Modular Quick Change Fixture Clamps 5 Axis Fixtures 22KN 185mm Cnc Workholding Clamps
| MOQ: | 1 |
| Price: | 414 - 483 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days. |
Modular Quick Change Fixture Clamps
,5 axis fixtures 22KN
,185mm cnc workholding clamps

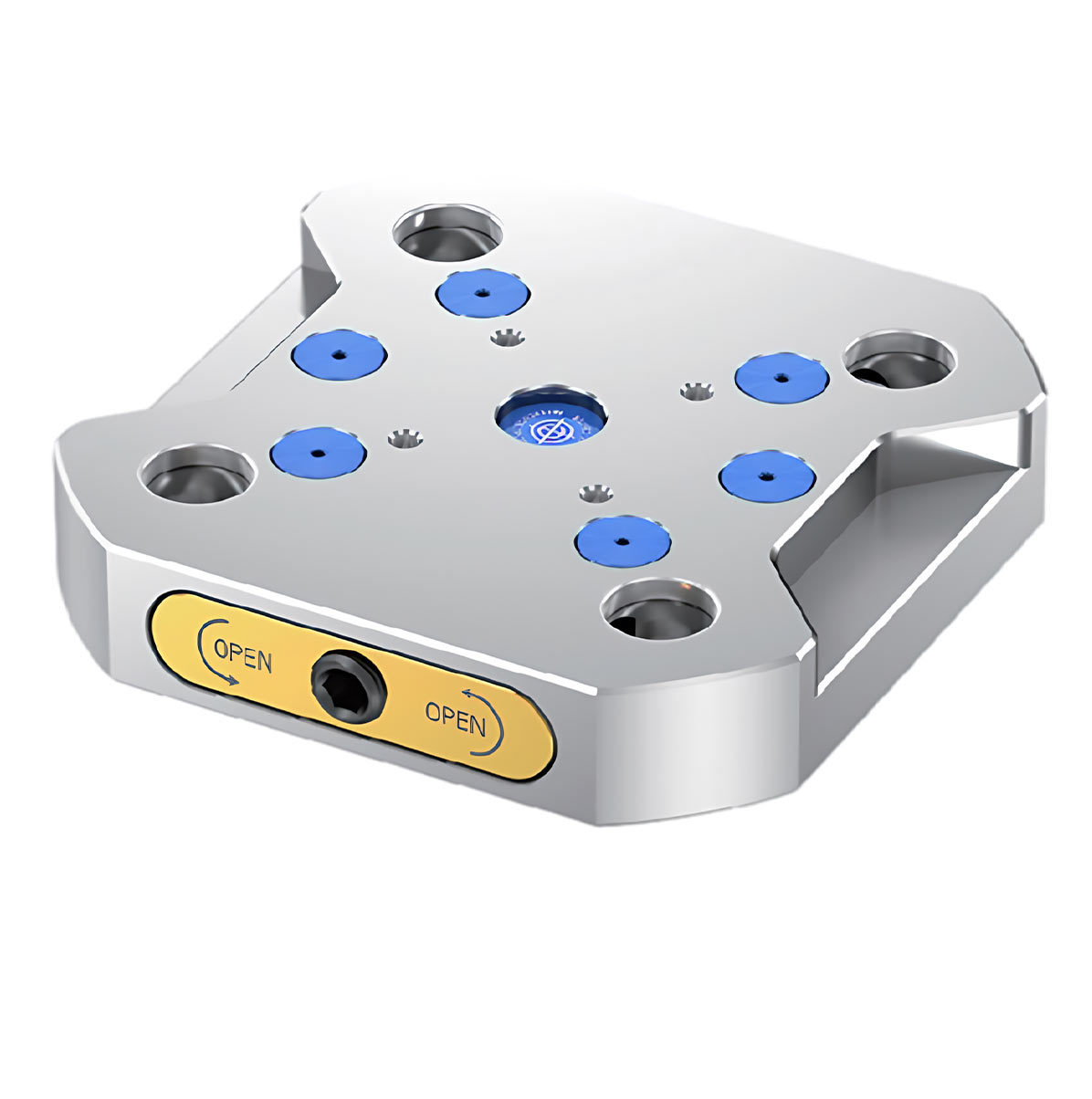

Modular Zero Point Base Plates for Clamping Fixturing 5-Axis CNC Vices
Modular Zero Point Base Plates for TS96-185 Clamping Fixturing 5-Axis CNC Vices
The perfect combination of manual vises and manual zero positioning system enables a modular design that quickly achieves strong locking
The Modular Zero Point Base Plates for the TS96-185 system create a versatile and scalable foundation for 5-axis CNC workholding. These plates can be seamlessly combined to form a custom clamping surface, perfectly adapting to your specific part and fixture needs. The integrated zero-point system ensures rapid, tool-less changeovers of vices and fixtures, achieving repeatable micron-level accuracy in seconds. This modularity, combined with the robust TS96-185 clamping mechanism, provides unparalleled flexibility for complex, multi-sided machining. Dramatically reduce setup time, maximize spindle utilization, and boost productivity with this essential, high-precision fixturing solution for modern manufacturing.
| Model | Dimensions | Material | Weight | Bolts | Clamping Force |
| TS96-185 | D185*30mm | Hardened Stainless Steel | 4.4kg | 6-M10 | 22KN |
