CNC Workholding Automated Fixtures Ball Lock Clamp For High Precision Fixture 8mm
| MOQ: | 3 |
| Price: | 25 - 34 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days. |
CNC Automated Fixtures
,Workholding Automated Fixtures
,Ball Lock Clamp 8mm

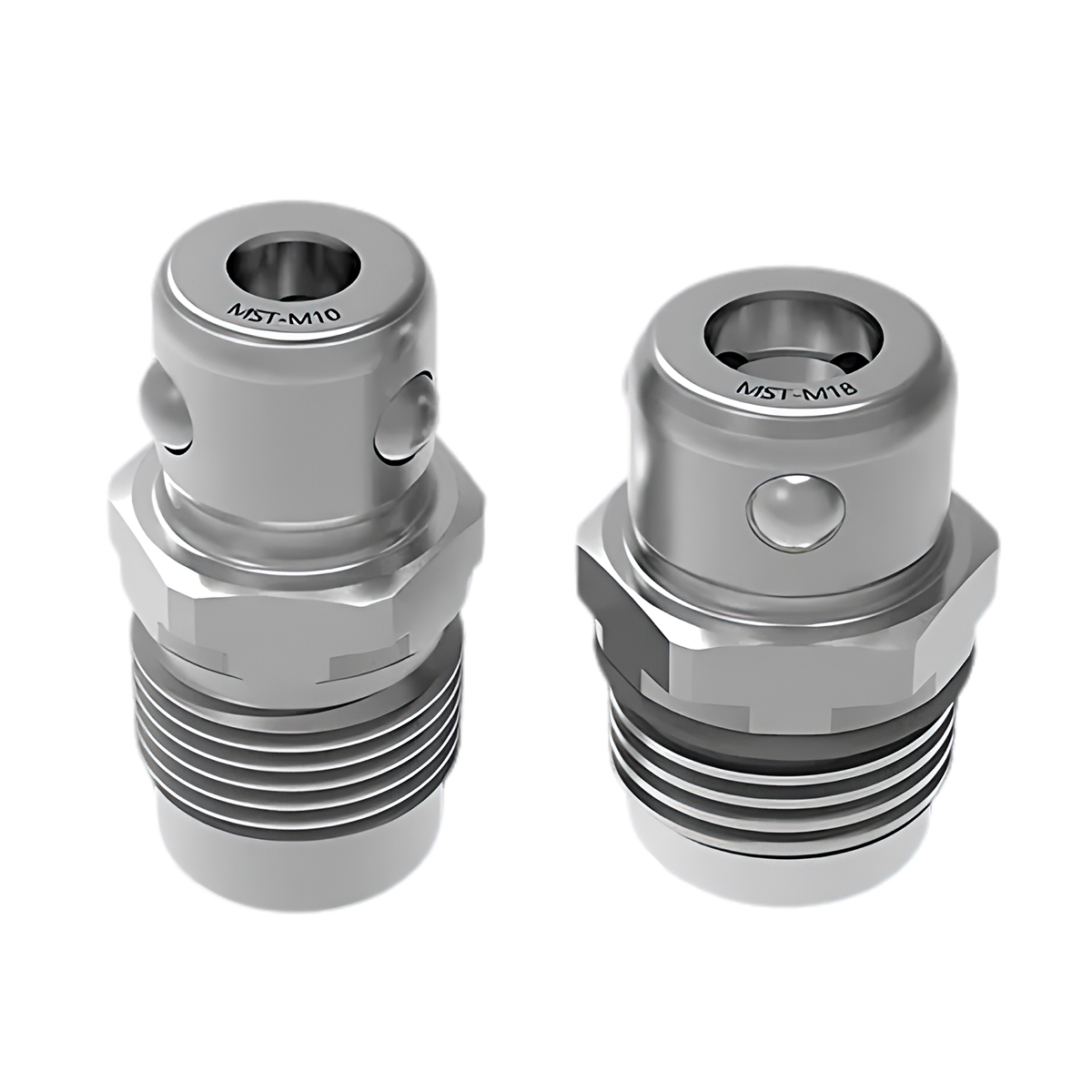

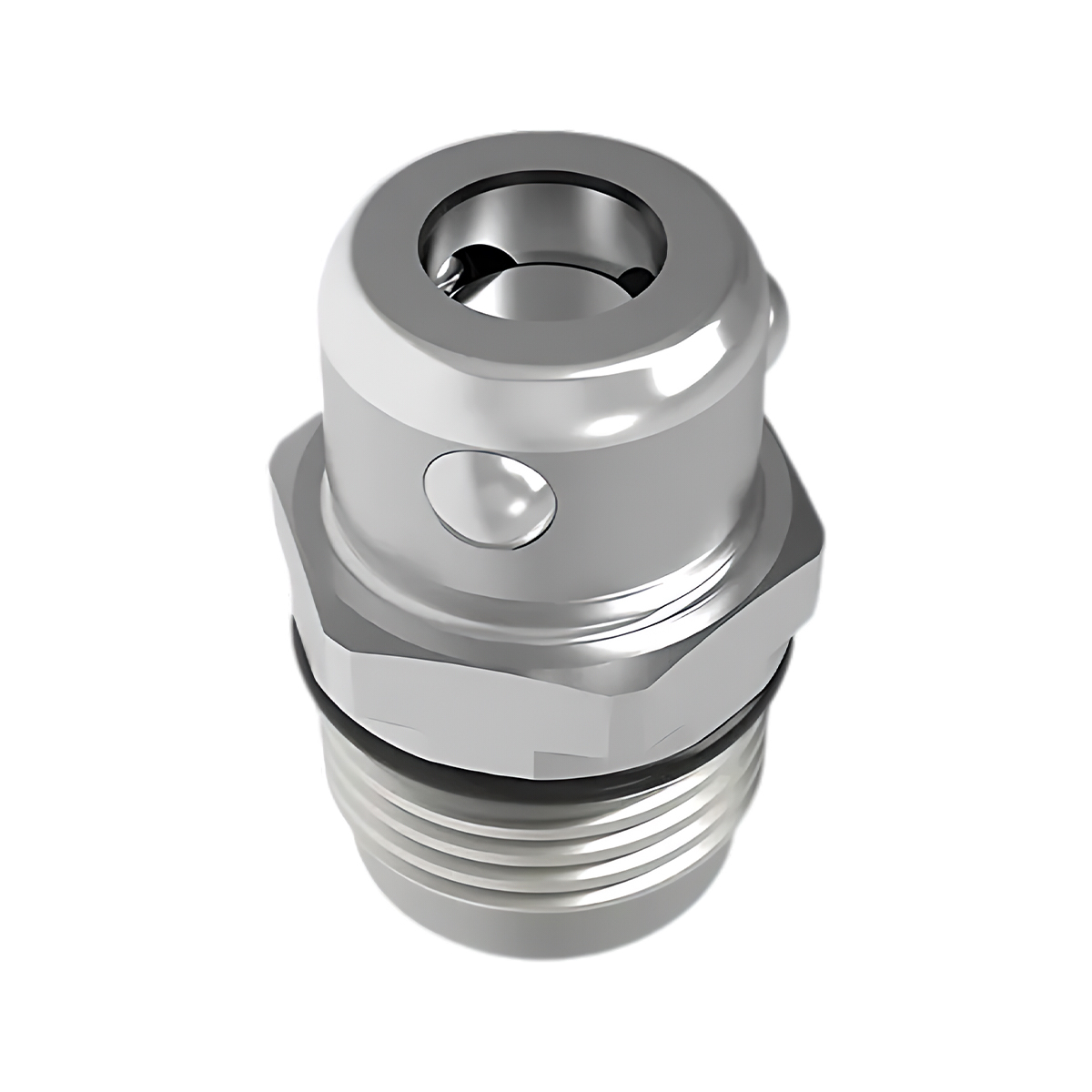

Ball Lock Clamp for Quick Change Fixturing High Precision Fixture CNC Workholding
External Diameter : o6.5~16
Operating Pressure : 2.5~7.1kgf/㎡
Operating Temperature : 0~70°C

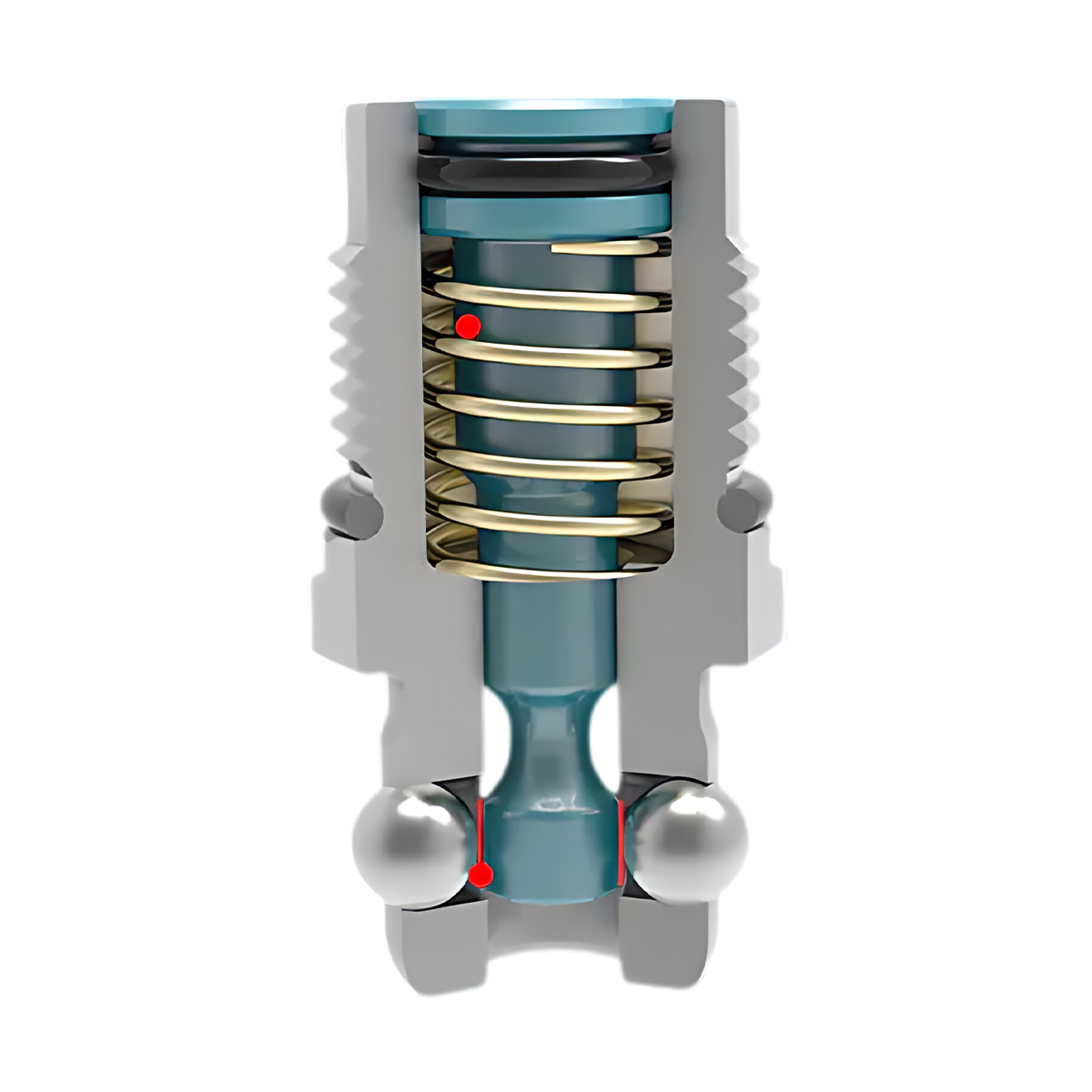

Air Pressure OFF(LOCK):
The Piston is down by spring inside and the balls outto hold the pallet by contacting the surface of it.
Air Pressure ON(RELEASE)The Piston is pushed by a little amount of air pressureand the balls are entered inside.
This high-precision Ball Lock Clamp revolutionizes quick-change fixturing for CNC workholding. Utilizing a precision ball-locking mechanism, it enables rapid fixture changes in seconds while maintaining exceptional repeatability within microns. The robust design ensures maximum clamping force and vibration-free stability during aggressive machining operations. Ideal for modular workholding systems, it allows seamless integration with existing fixture plates and tombstones. By eliminating traditional bolting methods, this solution dramatically reduces setup time and increases machine utilization. The hardened components provide long-term reliability, making it an essential tool for high-mix manufacturing environments requiring fast changeovers and unwavering accuracy.
