Locating Quick Change Fixture Clamps Ball Lock Face Mount Receiver Bushings Screw Fit

Locating Quick Change Fixture Clamps Ball Lock Face Mount Receiver Bushings Screw Fit

MOQ: 1
Price: 30 - 47 USD per item
Standard Packaging: Carton/wooden crate
Delivery Period: 7-10 days
Payment Method: T/T,L/C
Supply Capacity: Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Detail Information
Place of Origin
Chongqing, China
Brand Name
ADJIG
Model Number
QSP16020
Material:
High-quality Steel
Installation:
Easy To Install And Use
Maintenance:
Low Maintenance Required
Size:
Customizable
Adjustability:
Easily Adjustable For Different Workpieces
Type:
Fixture
Durability:
Long-lasting
Convenience:
Saves Time And Effort In Changing Workpieces
Usage:
Quickly Change Workpieces In A Production Line
Precision:
Ensures Accurate Positioning Of Workpieces
Efficiency:
Increases Production Speed
Highlight:

locating quick change fixture clamps

,

ball lock face mount receiver bushings

,

locating face mount receiver bushings

Product Description
High-Precision Locating Ball Lock Face Mount Receiver Bushings Screw Fit CNC Clamping Fixture

Features, Benefits, & Product Specifications:
  • Material: 4340 Steel
  • Finish: Black Oxide
  • Heat Treat: 50-54 RC
  • Operating Temperature Range: -20°F to 400°F (-30°C to 200°C)

Repetitive positioning accuracy<± 0.013mm;



Achieve unparalleled accuracy and speed with our High-Precision Locating Ball Lock Face Mount Receiver Bushings. Engineered for screw-fit installation, these robust bushings form the critical female half of a ball lock clamping system. They provide a perfectly matched, hardened interface for ball lock shafts, ensuring micron-level repeatability and extreme rigidity in your CNC fixture setup. Ideal for creating modular workholding solutions on fixture plates, these receiver bushings enable rapid, tool-less changes—drastically reducing downtime and boosting machining throughput. Secure your components with absolute confidence and unlock the full potential of high-speed, high-precision manufacturing


PART NUMBER ΦD1 ΦD2 ΦD3 ΦD4 H H1 M ΦN WEIGHT(kg)
JS1637 37 16 4.5 20.65 11.56 4.6 7.6 29 60
JS2045 45 20 5.4 24.77 15.8 6.2 9.5 35 140
JS2555 55 25 6.4 20.35 19.94 7.3 11 42 200
JS3060 60 30 6.4 36.2 21.77 7.3 11 48 305

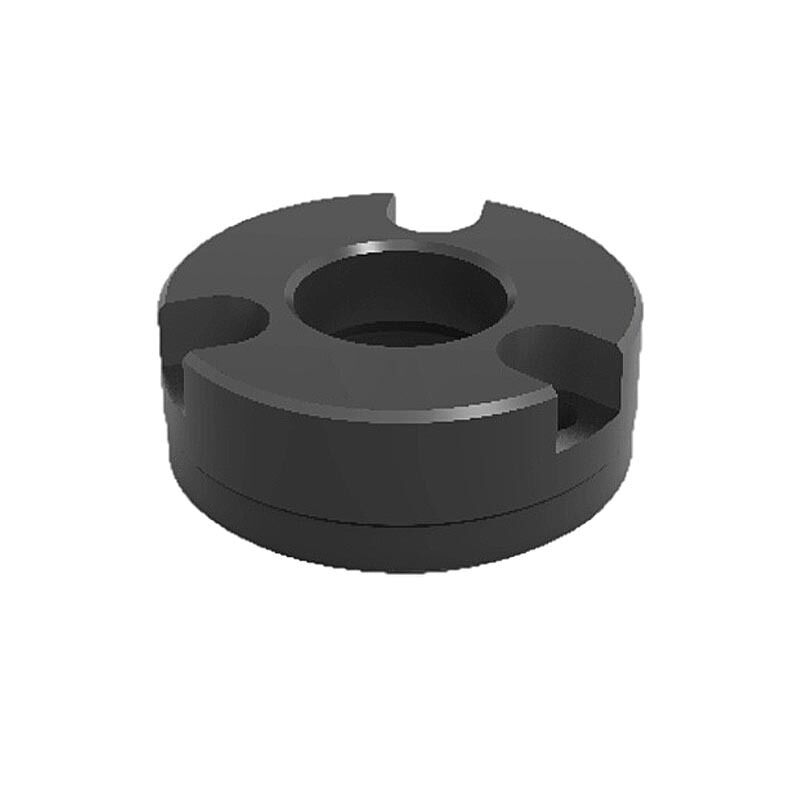

Locating Quick Change Fixture Clamps  Ball Lock Face Mount Receiver Bushings Screw Fit 0
