| 起源の場所: | 重慶、中国 |
|---|---|
| ブランド名: | ADJIG |
| モデル番号: | Ancz-（10/20/40）s |
| Document: | ANCZ-10S.pdf |
| 最小注文数量: | 1 |
| 価格: | 690 USD per item |
| パッケージの詳細: | カートン/木製の木枠 |
| 受渡し時間: | 7～10日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 5〜7日以内に出荷された30個未満。 25〜30日以内に30を超えるアイテムが出荷されます。 |
| ロック解除方法: | 空気圧 | クランプ力（kn）: | 40/10/17 |
|---|---|---|---|
| 引張力(kN): | 25/55/105 | 吹く: | ✔ |
| 重量(kg): | 1.7/2.5/4.2 | 繰返し精度（mm）: | 0.003 |
| 材料: | 硬化ステンレス鋼 | 耐用年数: | 何百万回も |
| ハイライト: | 5 Axis Zero Point Clamping System,CNC Zero Point Clamping System,Positioning mold locating pins |
||

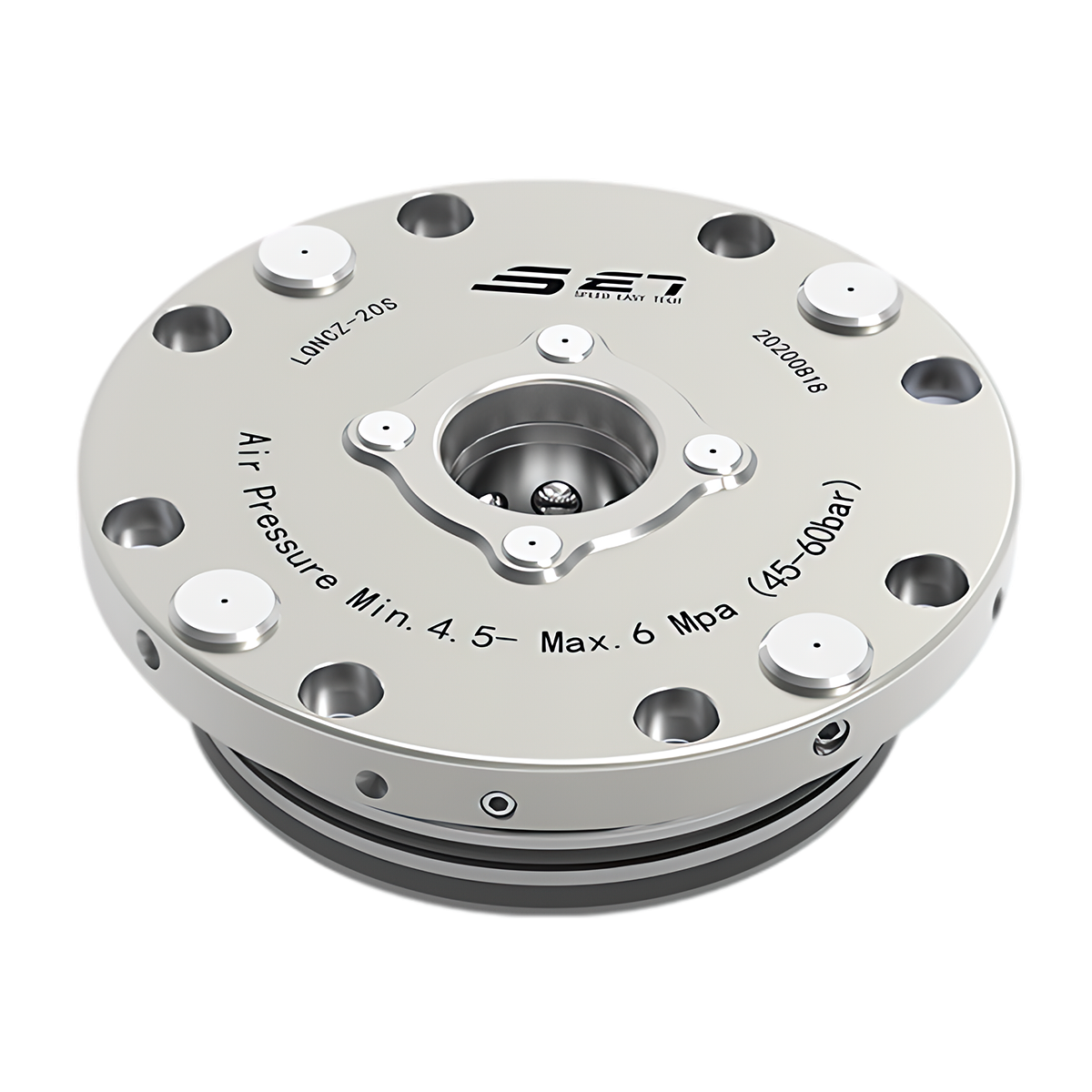

China Supplier 5-Axis CNC Automated Zero-Point Workholding Positioning System Clamping
Pneumatic unlocking, spring-loaded mechanical locking
Repeat positioning accuracy <0.003mm;
Includes surface air-blow cleaning function,
Material: Hardened stainless steel
Features lifting function, dual-sided restraint, high precision, strong rigidity
Equipped with air-tightness detection interface for positional release.
As a leading China supplier, we present this advanced 5-Axis CNC Automated Zero-Point Workholding System. Engineered for maximum efficiency, it delivers rapid, automated clamping with unparalleled precision. The system enables sub-minute fixture changes while maintaining micron-level repeatability, drastically reducing non-productive time. Its robust construction ensures vibration-free stability during complex multi-axis machining operations. Compatible with automated cells and robotic integration, this solution significantly boosts throughput and spindle utilization. Ideal for high-volume production environments, it represents the pinnacle of modern workholding technology - delivering exceptional accuracy, reliability, and productivity gains for demanding CNC machining applications worldwide.
| Model No. | Size No. | Unlocking Method | Clamping Force (kN) | Tensioning Force (kN) | Chip Blowing | Weight (kg) | Lifting Force(kN) (at 0.6 MPa) |
| ANCZ-10S | Q10 | Pneumatic | 10 | 25 | √ | 1.7 | 50 |
| ANCZ-20S | Q20 | Pneumatic | 17 | 55 | √ | 2.5 | 100 |
| ANCZ-40S | Q40 | Pneumatic | 40 | 105 | √ | 4.2 | 150 |
