5 Axis Machining Self Centering Vise Compact Centering Vise For Centering Clamp
| MOQ: | 1 |
| Price: | 610-770 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | Less than 10 pieces, shipped within 5-7 days. More than 10 items will be shipped within 25-30 days. |
Detail Information
Place of Origin
Chongqing, China
Brand Name
ADJIG
Model Number
JYSCV
Document
Name:
Self Centering Vise
Maximum Opening:
165mm
Repeatability:
＜0.01mm
Application Scenarios:
Suitable For Five Axis Quick Change Fixtures
Hardness:
HRC50
Material:
Alloy Tool Steel
Weight (kg):
3.6-6.3
Clamping Force (kN):
20
Max. Torque(N·m):
100
Forward/Reverse Clamping:
6-165
Repeatability(mm):
0.01
Latin Spacing(mm):
52
Highlight:
machining self centering vise
,machining centering clamp
,5 axis centering clamp
Product Description

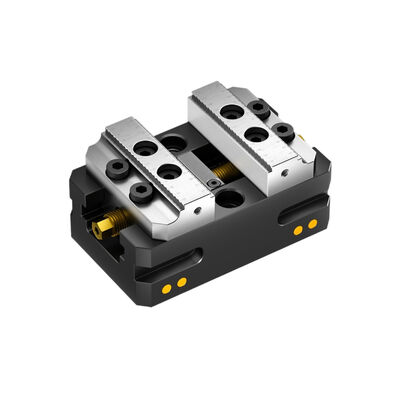

Self Centering Vise Compact Centering Vise For 5-axis Machining - Centering Clamp
Self centering vise JYSCV, with a maximum opening of 165mm, adopts a patented floating push block design, and the jaws and push blocks are flexibly linked.
Thereby improving accuracy and repeatability. Make the jaws easy to replace and reverse. And it has high-precision tooth shaped guide rails.
The vise has serrated teeth that provide maximum grip on non hardened materials, and there are multiple additional jaws to choose from. Such as dovetail jaws and raised toothed jaws.
Each vise includes a set of standard hardened steel jaws. A wrench. Two fixing screws.
| Model | JYSCV-M80130 | JYSCV-M80170 | JYSCV-M90210 |
| Base length(d) | 130 | 170 | 210 |
| Base height(h) | 43 | 43 | 43 |
| Claw height(P) | 21 | 21 | 26 |
| Claw width(Q) | 80 | 80 | 90 |
| Claw clamping range(b-a) | 6-55 | 6-95 | 6-135 |
| Claw clamping range(j-i) | 38-85 | 38-125 | 38-165 |
| Screw length(c) | 138 | 178 | 218 |
| Long(c)*Wide(e)*Height(o) | 138*80*64 | 178*80*64 | 218*90*69 |
| Total weight | 3.6kg | 4.4kg | 6.3kg |
| f | 10 | 10 | 10 |
| g | 5 | 5 | 5 |
| k | 100 | 100 | 100 |
| i | 52 | 52 | 52 |
| m | 57 | 57 | 57 |
| n | 52 | 52 | 52 |
