FC30 Burnished Fixture Base Plate CMM Gridded Fixture Plate

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	customized
Document:	JYPB02.pdf

Minimum Order Quantity:	1
Price:	560-1410 USD per item
Packaging Details:	Carton/Wooden crate
Delivery Time:	12-15 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 5 pieces, shipped within 12-15 days. More than 5 items will be shipped within 20-25 days.

Get Best Price

Chat Now

Detail Information

Material:

Heat Treatment:

Burnished

Highlight:

FC30 Fixture Base Plate

Burnished Fixture Base Plate

CMM Gridded Fixture Plate

Product Description

Fixture Base Plate CMM Fixture Grid Base Plate Gridded Fixture Plate

●Allignment Busing and Thread Hole for Quick Accurate Set-ups

●Ground Flat and Parallel

●Locating Holes for easy Location

Metal (customizable material) fixture plate with mounting holes. Grid pattern with allignment bushes and threaded inserts for ease of set-up.

Ground flat parallel and perpendicular for accuracy.

Two dowel holes allow for precise loading and setting up of the fixture plate.

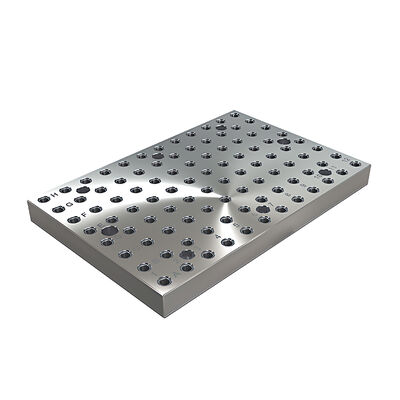

FC30 Burnished Fixture Base Plate CMM Gridded Fixture Plate 0
