Workholding Fixture Base Plate CNC Base Plate Machining Center Modular Tooling Plate

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	BP15
Document:	BP15.pdf

Minimum Order Quantity:	5
Price:	560-1410 USD per item
Packaging Details:	Carton/Wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:

Finish:

Burnished

Highlight:

double sided Fixture Base Plate

Fixture Base Plate FC30

cnc base plate oem

Product Description

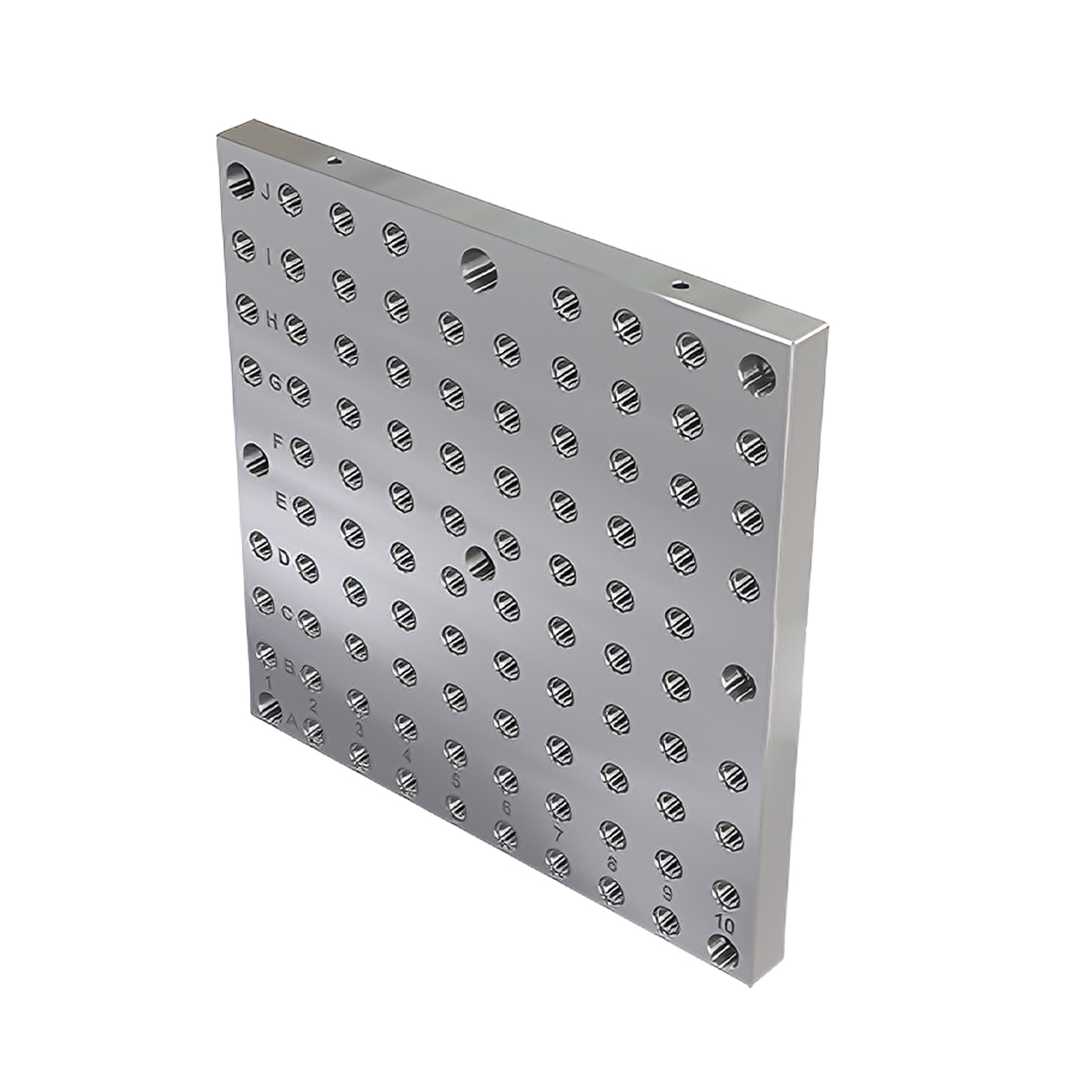

Fixture Plate Sub-Plate Baseplate for CNC Machining Center Modular Tooling Plate Workholding

Sub-Plate
Material: FC30
Finish: Burnished
Application: Suitable for replaceable double-sided bases
Features: Utilizes hole-based positioning with standardized fixture components for rapid assembly of a complete set of customized fixtures meeting specific requirements.

Model No.	A	B	C	D	E	F	K	P	S	G		MFT	Mountingholes	KG
BP15-40400-0400-12	400	400	40	350	350	370	50	7	7	Ø12	M12	58	5	42
BP15-40500-0500-12	500	500	40	450	450	470	50	9	9	Ø12	M12	94	7	69
BP15-40630-0630-12	630	630	40	580	580	600	50	11	11	Ø12	M12	138	7	108
BP15-50800-0800-12	800	800	50	750	750	770	50	15	15	Ø12	M12	250	7	220

Model No.	A	B	C	D	E	F	K	P	S	G		MFT	Mountingholes	KG
BP15-40400-0400-16	400	400	40	350	350	370	50	7	7	Ø16	M16	58	5	41
BP15-40500-0500-16	500	500	40	450	450	470	50	9	9	Ø16	M16	90	7	67
BP15-40630-0630-16	630	630	40	580	580	600	50	11	11	Ø16	M16	138	7	105
BP15-50800-0800-16	800	800	50	750	750	770	50	15	15	Ø16	M16	246	7	215
