Machinable Fixture Base Plate Modular Tooling System Sub Plate Fixture Plate

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	BP19

Minimum Order Quantity:	5
Price:	560-1410 USD per item
Packaging Details:	Carton/Wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:

Heat Treatment:

Burnished

Highlight:

Machinable Fixture Base Plate

Modular Fixture Base Plate

S45C Sub Plate Fixture Plate

Product Description

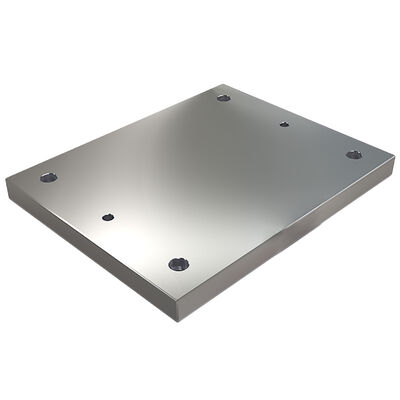

Machinable Sub-Plate Fixture Plate for CNC Workholding Modular Tooling System OEM Customizable

SUB-PLATE
Material: S45C
Heat Treatment: Burnished
Application: Suitable for various substrates or bases
Features: Can be drilled and machined to create custom fixtures according to specific requirements

Model No.	A	B	C	D	E	F	H	I	KG
BP19-30150-0200-12	200	150	30	12	M12	100	100	100	8
BP19-30150-0300-12	300	150	30	12	M12	200	100	200	11
BP19-30200-0200-12	200	200	30	12	M12	100	100	100	9.5
BP19-30200-0300-12	300	200	30	12	M12	200	100	200	14.5
BP19-30300-0300-12	300	300	40	12	M12	200	200	200	21.5
BP19-40300-0400-12	400	300	40	12	M12	300	200	300	38
BP19-40400-0400-12	400	400	40	12	M12	300	300	300	51
BP19-40400-0500-12	500	400	40	12	M12	400	300	400	63

Model No.	A	B	C	D	E	F	H	I	KG
BP19-30150-0200-16	200	150	30	16	M16	100	100	100	8
BP19-30150-0300-16	300	150	30	16	M16	200	100	200	11
BP19-30200-0200-16	200	200	30	16	M16	100	100	100	9.5
BP19-30200-0300-16	300	200	30	16	M16	200	100	200	14.5
BP19-30300-0300-16	300	300	40	16	M16	200	200	200	21.5
BP19-40300-0400-16	400	300	40	16	M16	300	200	300	38
BP19-40400-0400-16	400	400	40	16	M16	300	300	300	51
BP19-40400-0500-16	500	400	40	16	M16	400	300	400	63
