CNC Components Quick Change Fixture Clamps Screw Locator Locating Pin Fixture
| MOQ: | 5 |
| Price: | 28 - 69 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | ,L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days. |
CNC Components Quick Change Fixture Clamps
,Screw Locator 0.003mm accuracy
,0.003mm accuracy zero point clamping system
Screw Locator Locating Pin Fixture CNC Components Manual Quick Change Clamp
Product Features:
1. Simple Manual Setup
2. High-Precision Location.
3. Locating Repeatability 3µ.
4. Min. Tightening Force 1200-3000 N.
5. Max. Loading Weight - Horizontal Mounting: 100-800kg, Vertical Mounting: 20-160kg

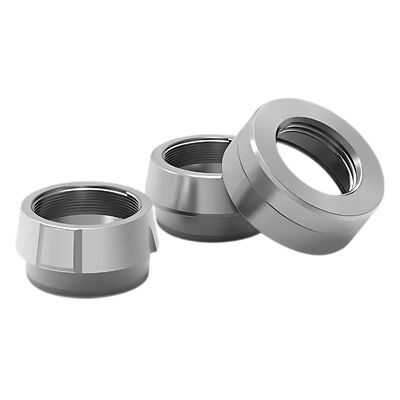

Screw Locator with a movable taper sleeve performs high-precision locating of pallets and
plates simply by fastening the bolts, Cut Pin, Tightening Bolt Size M12, Option PC.
This manual quick-change clamp system, featuring a robust screw locator and precision locating pin, redefines efficiency in CNC fixture setup. The integrated components work in unison to provide rapid, tool-less changes and micron-level repeatable positioning. The screw locator securely clamps the workpiece, while the hardened locating pin ensures perfect alignment, eliminating errors. Ideal for modular fixtures and high-mix production, this solution drastically reduces non-cutting time between jobs. Achieve unparalleled accuracy, enhance workflow flexibility, and maximize machine uptime with this essential, high-performance workholding combination for demanding manufacturing environments.
| Model | SDJT0080 | SDJT0100 | SDJT0120 | SDJT0160 | |
| Repeatability accuracy | 0.003 | ||||
| 0.2 | 0.3 | ||||
| Load Capacity | Horizontal installation (g) | 400 | 500 | 600 | 800 |
| Vertical installation (g) | 80 | 100 | 120 | 160 | |
| Clamping force (KN) | 1.8 | 2 | 2.5 | 3 | |
| Clamping sequence | Positioning pin (SDJT-PD) → Orientation pin (SDJT-PC) | ||||
| Temperature (℃) | 0-70 | ||||
| Weight | Locating pin (g) | 4 | 5 | 15 | 25 |
| Locating sleeve (g) | 10 | 11 | 36 | 50 | |
