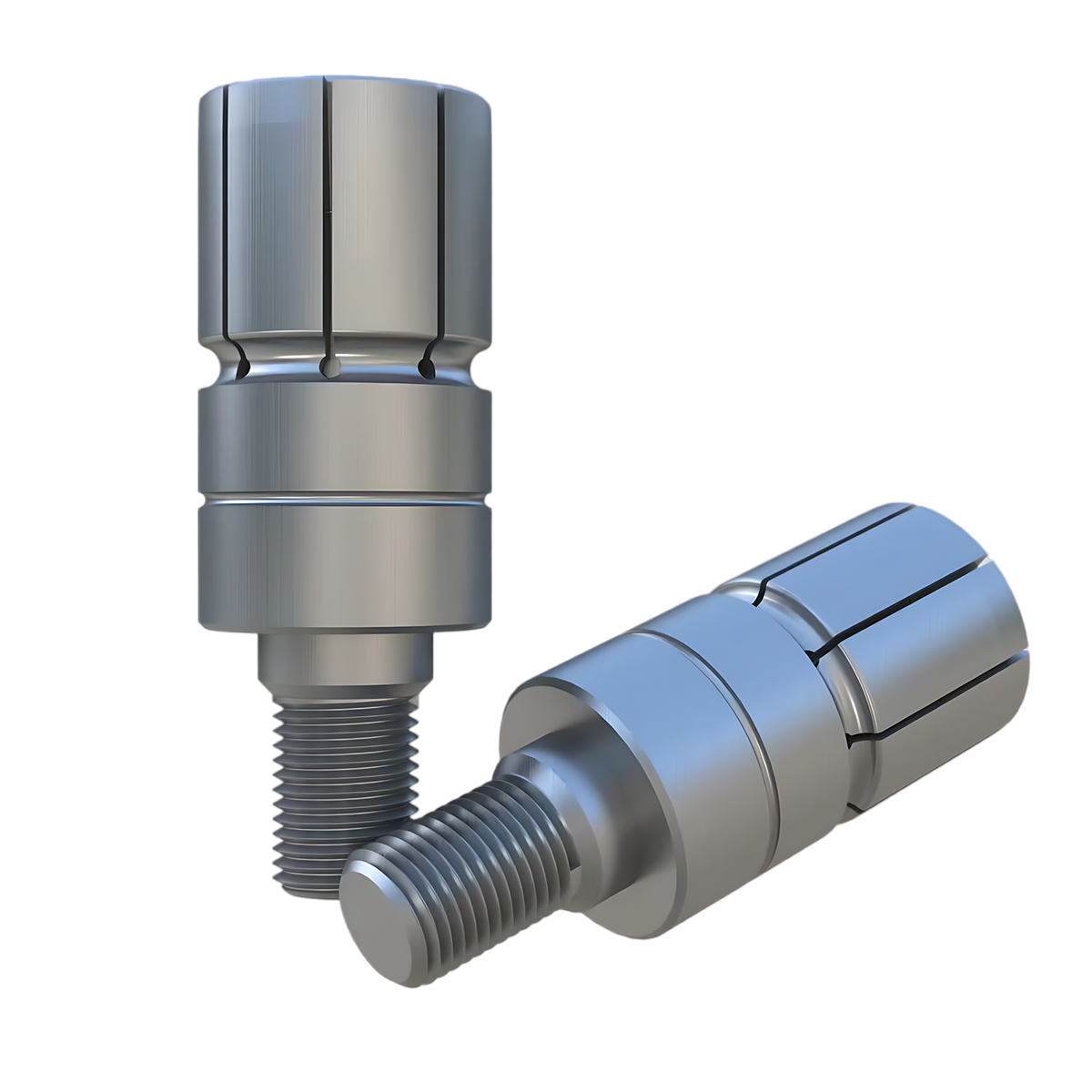

Spring Steel Manual Expansion Clamp Pin Internal Support Sleeve Quick Positioning Lathe

Precision Manual Expansion Pin Internal Support Sleeve Quick Positioning Lathe

Material: High quality spring steel

Positioning accuracy: 0.02mm

Size: Customizable according to different product sizes

Expansion stroke: It is recommended to be within 0.3mm and not exceed 0.5mm at most.

Introduction:

ID expansion clamps expand to self-center and clamp on the inside diameter of a workpiece, leaving the outside clear for machining.

Tightening the tapered center screw of ID clamps with a hex wrench pushes the clamping segments outward, and slightly downward, to exert force on the workpiece's internal bore.

ID expansion Clamps allow close mounting for multi-part machining on vertical and horizontal machining centers.

Clamp (Chongqing) Inteligent Equipment Co., Ltd., based in Chongqing, China, operates a fully inte-grated manufacturing facility spanning 1,800 m*, equipped with R&D and production capabilities. Thecompany specialises in advanced fixture systems for key industries, including aerospace, automotiveand precision machining.

Since 2020, Clamp has become a trusted fixture supplier for major state-owned and military institu-tions, such as CASlC's Second, Seventh and Ninth Institutes, AECC Liyang and the institute of Opticsand Electronics. The company also supplies leading automotive brands, including Seres and Xiaomi.
