High Precision Expansion Clamp Pin 34g 59g For CNC Fixtures Workholding
| MOQ: | 1 |
| Price: | 36 - 48 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days. |
High Precision Expansion Clamp
,Expansion Clamp 34g
,Expansion Pin 59g

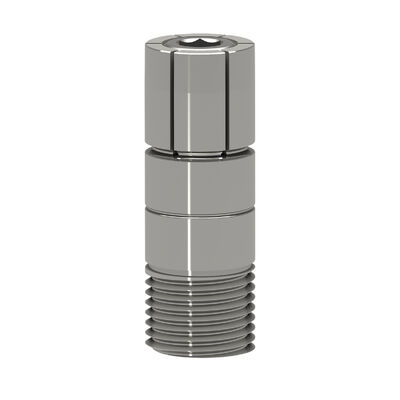

High Precision Expansion Pin for CNC Fixtures and Workholding Applications
Body:SUS630 HRC34
Tapered bolts:Steel (strength class 12.9) Oxygen resin coating
This High Precision Expansion Pin delivers exceptional accuracy for CNC fixtures and workholding applications. Engineered with a precision-ground taper and advanced expansion mechanism, it provides secure, vibration-free clamping with repeatable micron-level accuracy. The pin's unique design ensures uniform radial expansion for perfect concentricity, making it ideal for locating and securing components in machining operations. Manufactured from hardened, heat-treated steel, it withstands rigorous production environments while maintaining long-term dimensional stability. The quick-expansion feature dramatically reduces setup time while providing consistent clamping force, making it an essential component for high-volume precision machining of gears, bearings, and other critical components in milling, grinding, and turning applications.
| Part Number | D1 | D2 | H2 | 0 D-0.025 |
H1 | H | M | L | W | W1 | Clamping Force (KN) |
Tightening Torque Body (N.m) |
| JYKZ-LS01 | 12 | 10.5 | 15 | 12 | 12 | 38 | M12*1.75 | 11 | 5 | 6 | 8.4 | 30 |
| JYKZ-LS02 | 16 | 12 | 16 | 16 | 16 | 45 | M16*2 | 13 | 6 | 8 | 11 | 30 |
| Part Number | Tightening Torque Tapered Bolt (N.m) |
Expansion Diameter for Self-Processing | Expansion Diameter |
Weight (g) |
Suitable for Tapered bolts |
| JYKZ-LS01 | 22 | 0.1~0.15 | 0.6 | 34 | JYKZ-LS01-TB |
| JYKZ-LS02 | 22 | 0.8 | 59 | JYKZ-LS02-TB |
