Fixture Clamping Steel Support Jack Pillow Block Height Adjustment for Clamping Fixture

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	SU18A-16001
Document:	Pillow Block-SU18.pdf

Minimum Order Quantity:	5
Price:	63-70 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Weight:	1.39 Kg	Material:	S45C
Heat Treatment:	HRC38°	Surface Finish:	Blackening Treatment
Application:	Support Workpieces	Warranty:	1 Year Limited Warranty
Type:	Pillow Block
Highlight:	s45c side clamping , s45c clamping fixture

Product Description

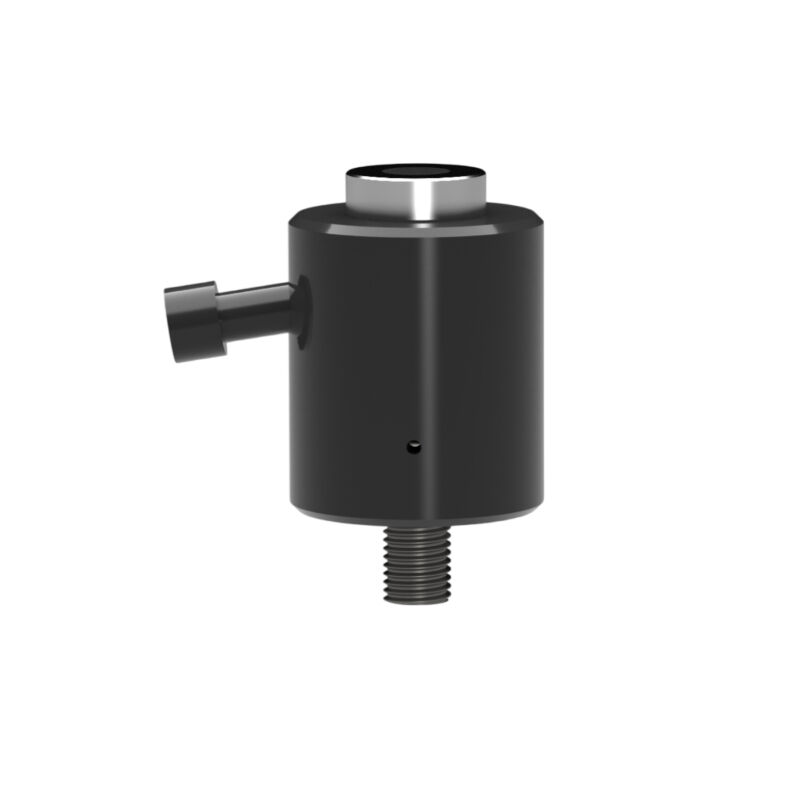

Fixture Clamping Steel Support Jack Pillow Block Height Adjustment for Clamping Fixture

Support for over hanging workpieces

Spring loaded for fast adjustment

Shock resistant during machining

Heat treated to HRC 38 - 42

This support jack features a spring loaded pluger on top and a threaded adjuster on the bottom. It is designed to support over hanging workpieces but can be used anywhere that adjustable workpiece support is required. The locking screw operates against a tapered surface to prevent push-back under load and the plunger has a threaded hole for the attachment of additional support elements like serrated pads or swivelling ball ends.

According to the height of the workpiece, the support height will automatically adjust after the bolt is loosened, and it has shockproof function during processing

Model No	H	S	M1	D1	D	M	L	W	H1
SU18A06001	33	6	M6	14	28	M6	10	4	22
SU1808001	42	10	M8	19	35	M8	15	5	28.5
SU1810001	50		M10	22	42	M10	14	6	34
SU1812001	60		M12	26	50	M12	17	8	42
SU1816001	70		M16	33	60	M16	22	10	47
