Heavy-Duty Extension Support for CNC Clamping Machining Milling Workholding
| MOQ: | 5 |
| Price: | 70-128 USD per item |
| Standard Packaging: | Carton/Wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days. |
workholding vise fixture
,workholding fixture support components
,s45c vise fixture

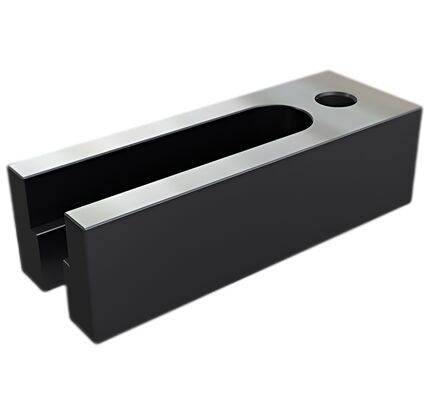

Heavy-Duty Extension Support for CNC Clamping Machining Milling Workholding
Material: S45C
Heat Treatment: HRC 40°
Surface Finish: Blackened
Application: Select appropriate hole positions for flexible installation of support or clamping components.
Engineered for maximum stability in demanding machining applications, this Heavy-Duty Extension Support provides critical, rigid support for tall or overhanging workpieces. Its robust construction effectively eliminates vibration and prevents part deflection during heavy milling and clamping operations. The adjustable design allows for quick and precise height alignment, seamlessly integrating into your modular fixturing system. By ensuring unparalleled rigidity, it protects your tools, enhances machining accuracy, and enables more aggressive material removal. This indispensable accessory is the ultimate solution for increasing throughput and achieving flawless results on complex, high-precision projects.
| Model No. | A | B | C | D | E | F | G | Weight(kg) |
| SU09-12120-30 | 120 | 40 | 30 | 70 | 13 | M12 | 16 | 0.85 |
| sU09-12120-40 | 40 | 26 | 1.1 | |||||
| SU09-16140-30 | 140 | 50 | 30 | 90 | 17 | M16 | 12 | 1.14 |
| SU09-16140-40 | 40 | 22 | 1.52 |
