Angular Indexing Pneumatic Collet Fixture CNC Machining Custom Workholding Fixtures

Non-Standard Pneumatic Fixture Designed for CNC Workholding Machining Systems

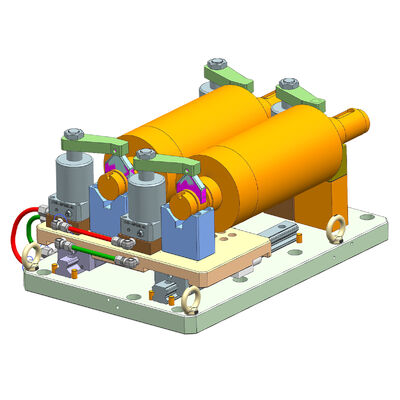

Each station includes precision locating areas surrounded by modular clamps that hold the circular parts securely. The rotary axis on the right allows angular indexing, enabling access to surfaces that would otherwise require repositioning. The fixture’s design ensures the workpieces remain stable during machining, even under aggressive cutting parameters. With its adjustable components and rigid construction, this fixture supports a wide range of part sizes and shapes. It is well-suited for applications involving contouring, drilling, and precision surfacing in advanced manufacturing.
