Adjustable Pneumatic Cnc Machine Clamps Fixture For Machining Complex Parts

High Precision No Standard Pneumatic Fixture for CNC Workholding Clamping Fixture

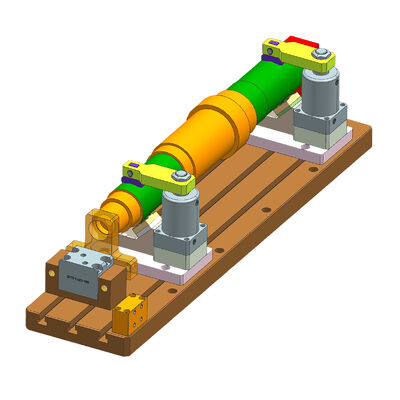

The non-standard fixture in the image is designed for machining high-precision components with intricate geometries. Each workpiece is secured with a combination of adjustable clamps and fixed locating elements to ensure perfect alignment. The rotary axis enables smooth and accurate indexing, allowing for continuous machining on multiple faces. The fixture plate is made from a rigid material to reduce vibration and maintain dimensional stability throughout production. This setup significantly reduces the need for manual handling, improving throughput and ensuring repeatable machining results. It is particularly advantageous for producing complex parts requiring tight tolerances.
