High Precision Custom Pneumatic Machining Fixture Clamps For Machining Systems

High Precision Custom Pneumatic Fixture for CNC Workholding Machining Systems

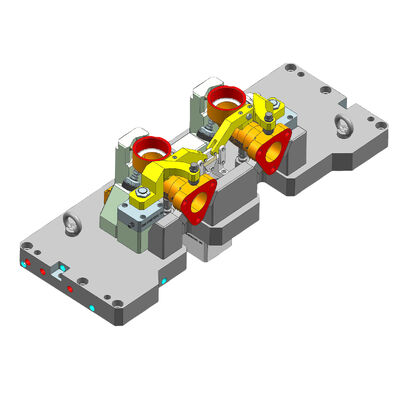

This fixture system integrates multiple clamping blocks arranged symmetrically around two workpieces to ensure balanced force distribution during machining. The rotary axis provides rotational control, making it possible to approach the part from different orientations without manual repositioning. The modular base plate has a wide grid of threaded holes, allowing technicians to rearrange fixture components quickly. The design maximizes productivity by reducing idle time between part changes. It also enhances accuracy by minimizing cumulative positioning errors. Such fixtures are commonly used in industries where precision and efficiency are critical, including robotics, automotive engineering, and precision machining workshops.
