Machinable Fixture Plate Subplate Tooling Plate for Precision Modular Workholding
| MOQ: | 5 |
| Price: | 560-1410 USD per item |
| Standard Packaging: | Carton/Wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days. |
Detail Information
Place of Origin
Chongqing, China
Brand Name
ADJIG
Model Number
BP04
Document
Material:
FC30
Heat Treatment:
Burnished
Highlight:
machinable fixture parts
,machinable fixture base plate
,precision fixture parts
Product Description

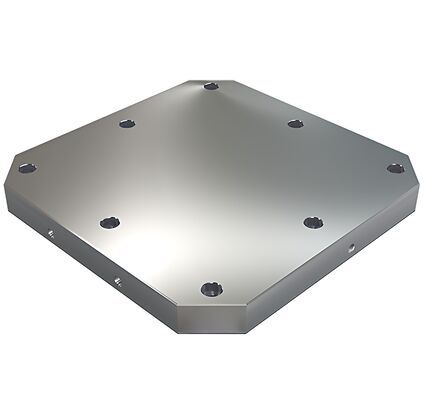

Machinable Fixture Plate Subplate Tooling Plate for Precision Modular Workholding
MC Base Plate
Material: FC30
Heat Treatment: Burnished
Application: For use in horizontal MC
Features: Can be drilled and machined to create custom fixtures as needed.
| MODEL NO. | A | B | C | D | Mountingholes | KG |
| BP04-50400-0400 | 50 | 400 | 320 | 55 | 4 | 57 |
| BP04-50500-0500 | 50 | 500 | 400 | 75 | 8 | 88 |
| BP04-50630-0630 | 50 | 630 | 500 | 100 | 8 | 140 |
| BP04-50800-0800 | 50 | 800 | 640 | 135 | 8 | 225 |
