Hydraulic Non-Standard Fixture for CNC Clamping Fixture Workholding Machining Operations

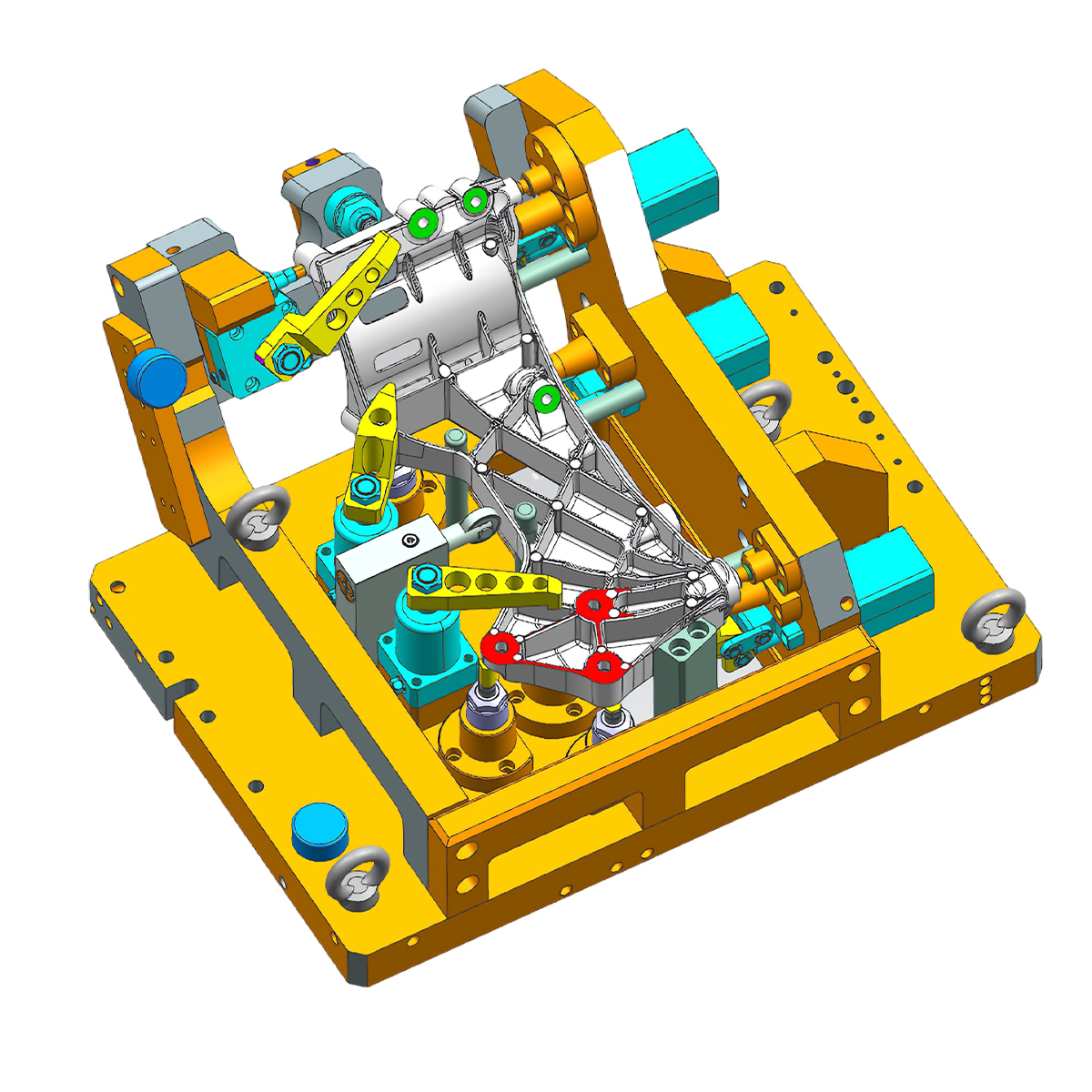

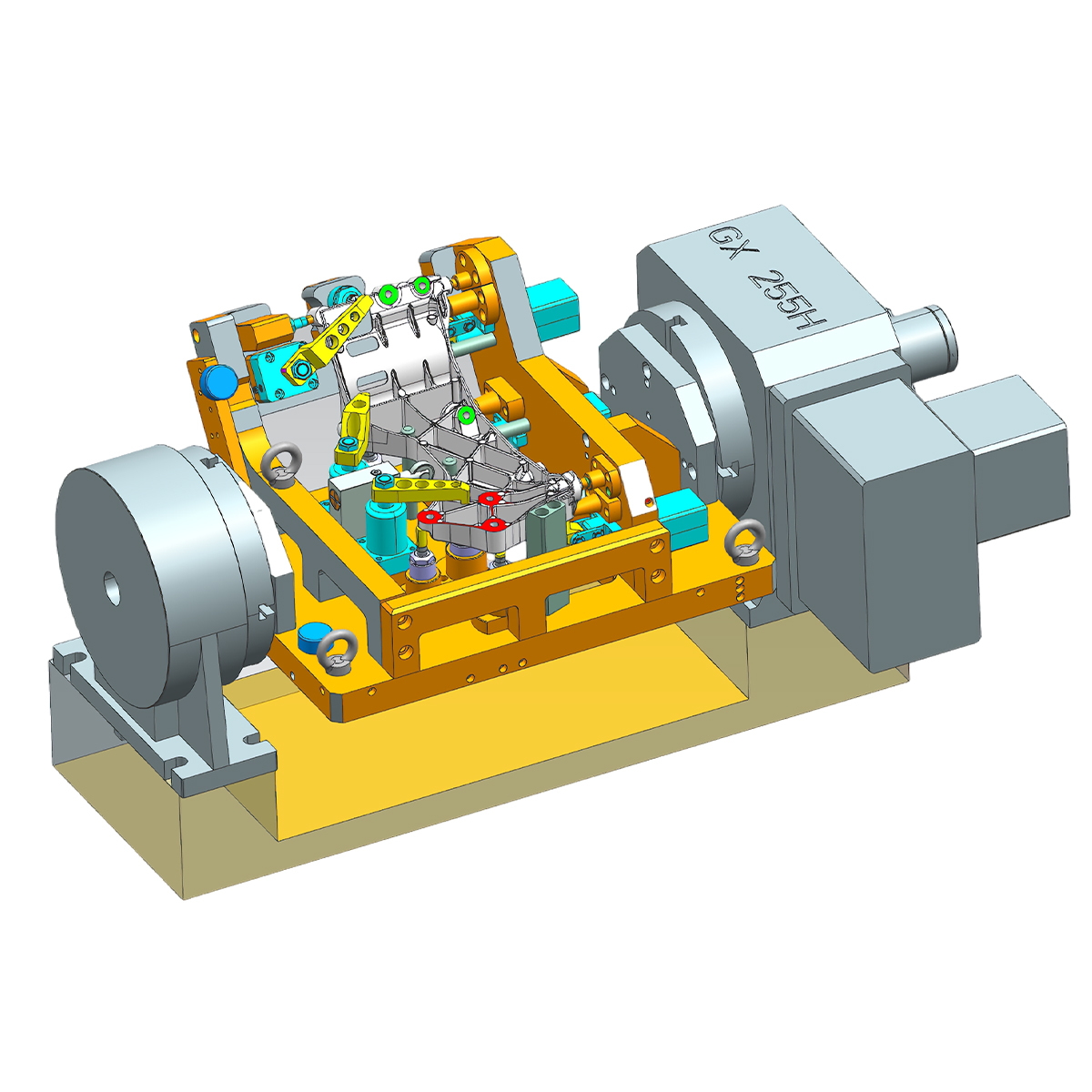

The fixture features a rigid orange base frame supporting multiple adjustable clamping modules, levers, and locating elements. The complex internal mechanism positions the irregular workpiece securely using multi-point support and coordinated linkage movement. Two rotary axes on each side enable multi-angle machining without repositioning the part. The assembly ensures stable clamping, accurate repeatability, and full accessibility for cutting operations, making it suitable for high-precision, multi-surface machining of complex mechanical components.
