Durable Custom Manual Machining Fixture Clamps Machine Hold Down Clamps

Durable Custom Manual Fixture for Precision CNC Workholding Clamping Fixture

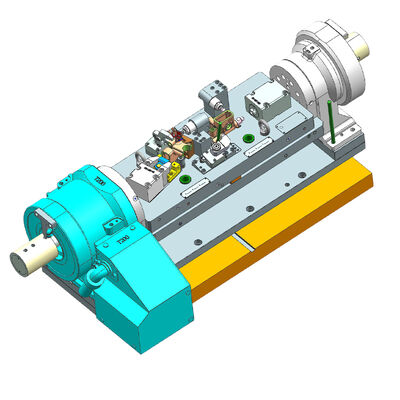

This non-standard fixture integrates modular clamps, locating pins, and support blocks into a single machining platform. The turquoise clamping units provide adjustable gripping force while enabling quick part replacement. Each workpiece sits within a precisely defined pocket, held tightly by side-pressure clamps and top-pressure elements. The system is mounted on a CNC rotary axis, allowing rotation of the entire fixture for multi-angle cutting operations. The robust structure minimizes deflection and vibration during machining, ensuring superior surface quality. This fixture is ideal for complex components requiring high accuracy and is commonly used in precision mechanical manufacturing environments.
