Custom Manual Cnc Side Clamps Precision CNC Machine Hold Down Clamps

Custom Manual Clamping Fixture for Precision CNC Workholding Clamping

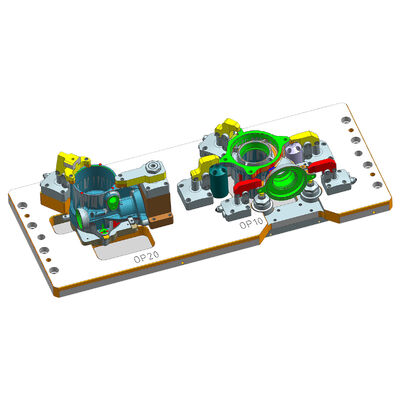

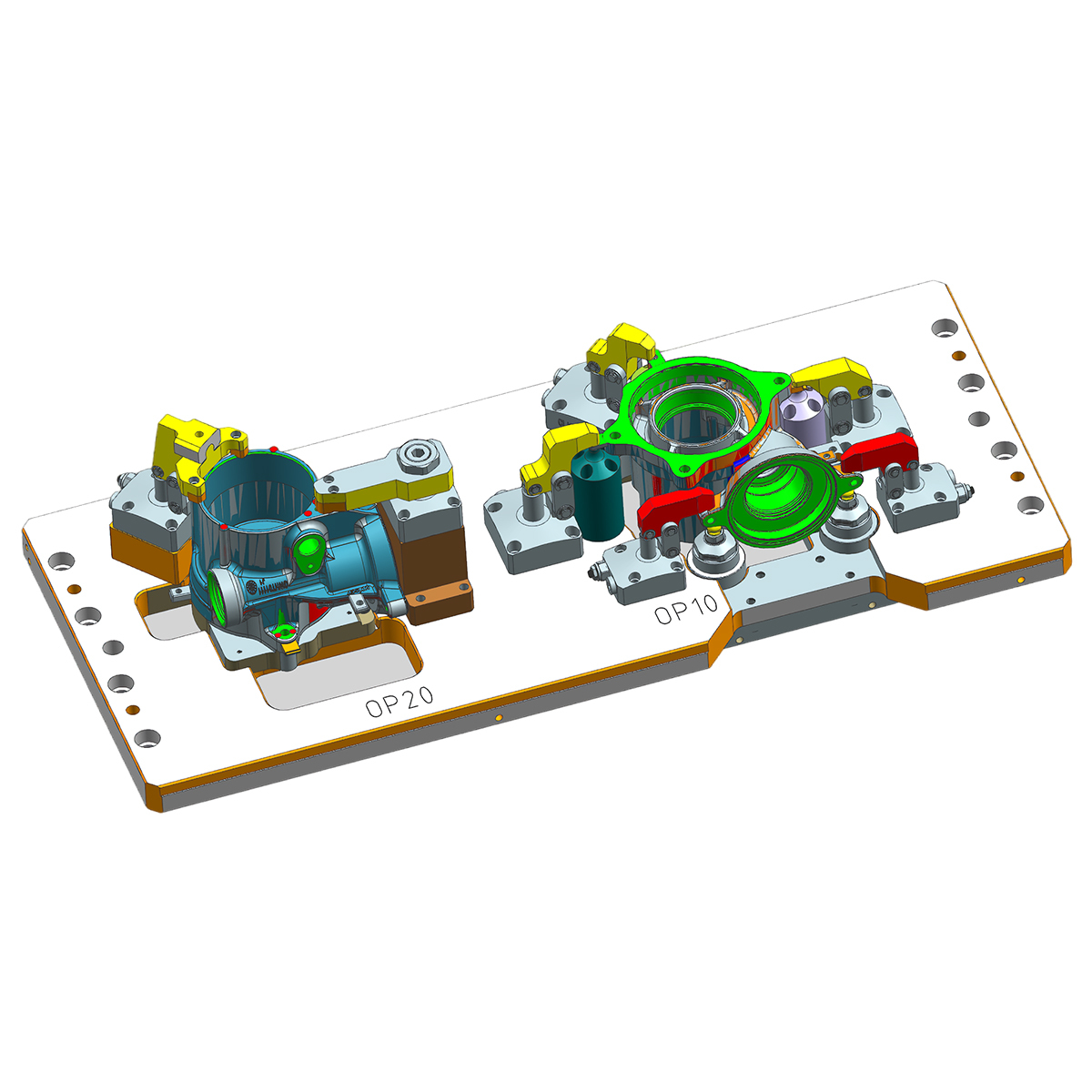

Both workpieces are fixed onto a rigid base plate using modular clamping blocks and zero-point positioning devices. These clamps are strategically arranged to secure the parts from multiple directions, preventing movement under high cutting loads. The rotary axis on the right side enables 4-axis or 5-axis machining, allowing the operator to access complex geometries without manual repositioning. This design enhances stability, reduces cycle time, and improves dimensional consistency across large production runs, making it suitable for aerospace or automotive applications.
