High-Strength No Standard Manual Fixture for Precision CNC Workholding Clamping

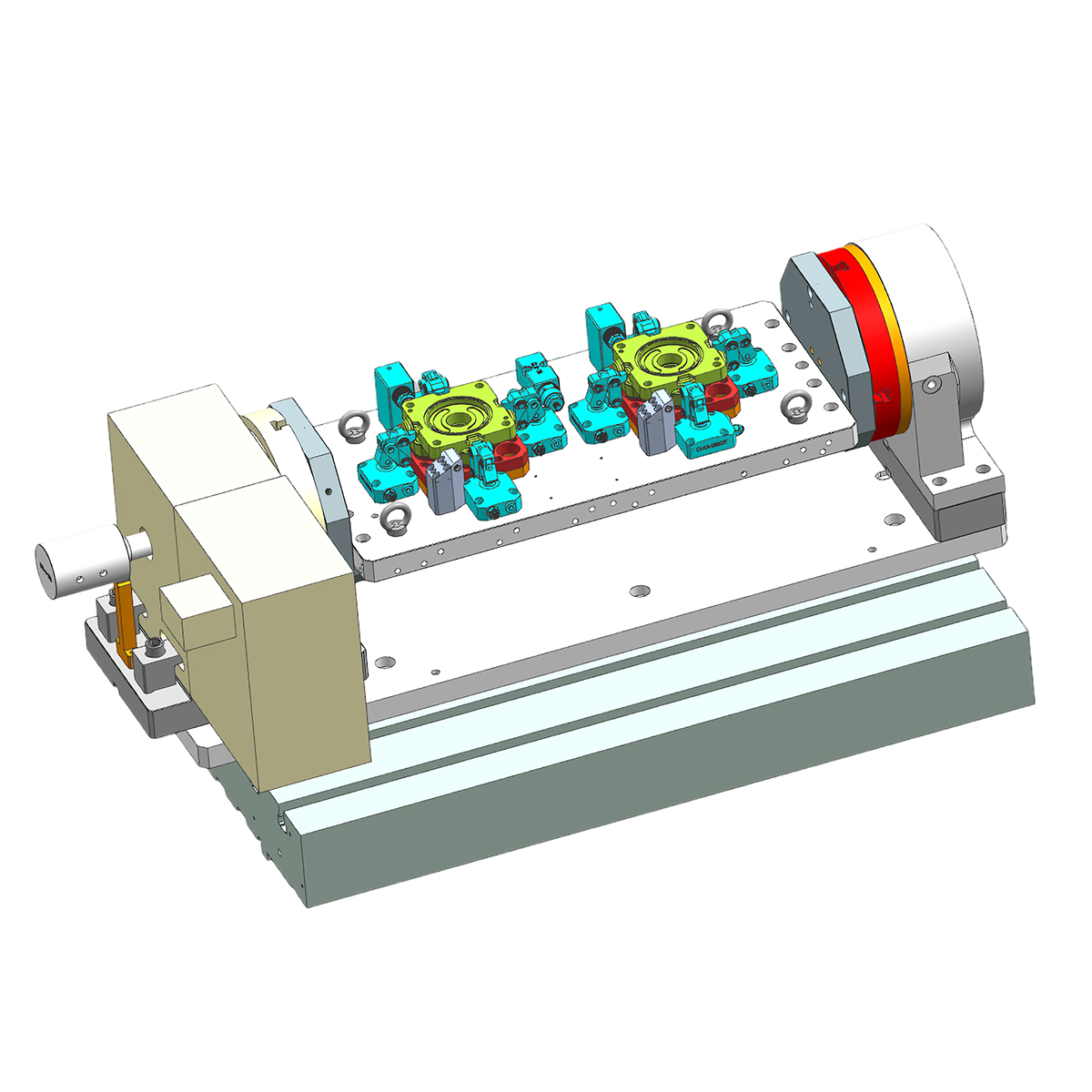

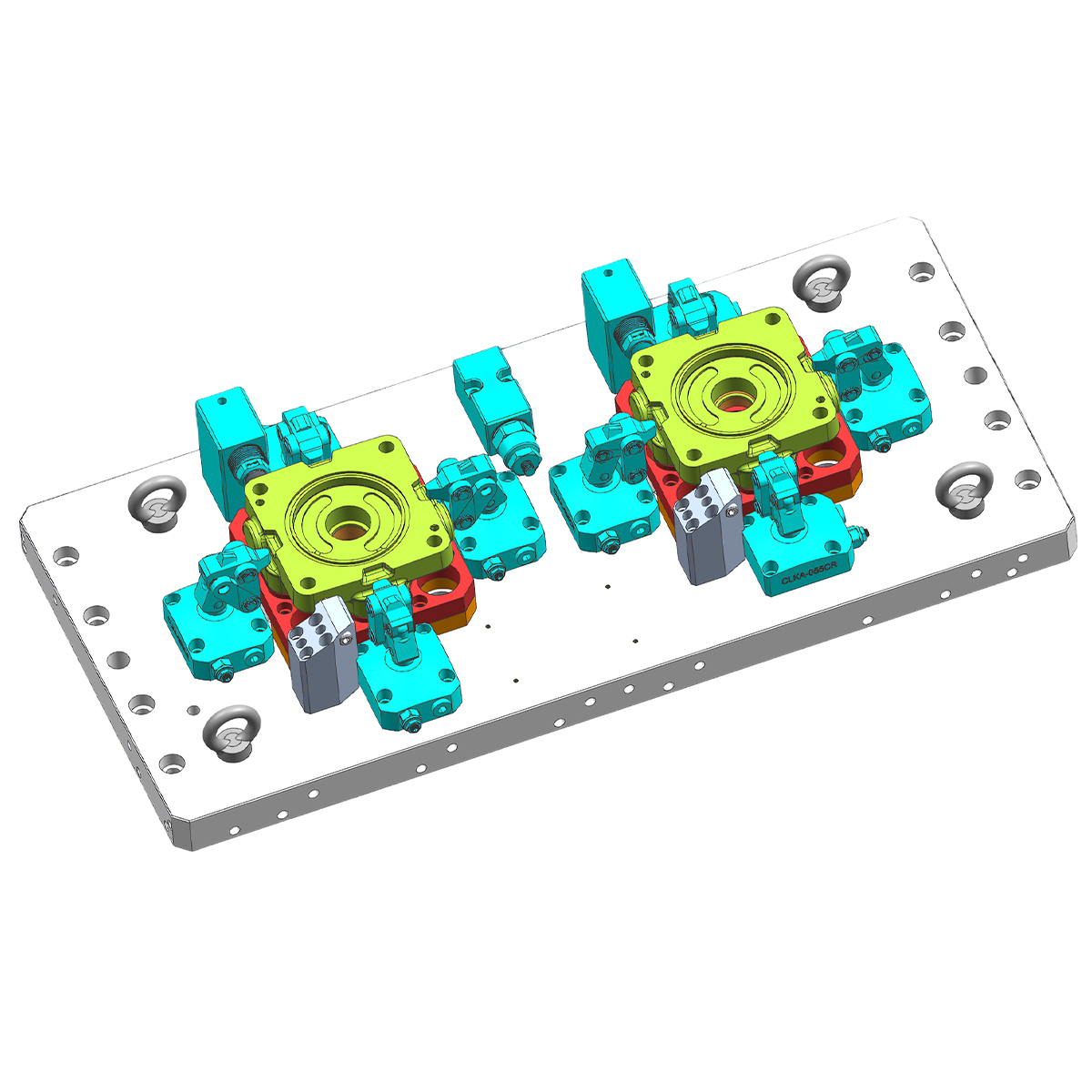

The fixture uses a long modular base plate equipped with an array of threaded mounting holes, allowing flexible placement of clamps and locating components. Two identical workpieces are positioned at the center, each held by multiple precision clamps to ensure accurate repeatability during machining. The right side features a rotary table that enables complex multi-face milling without repositioning the part. Overall, the system is engineered to support high-precision operations, reduce setup time, and increase production efficiency in small-batch manufacturing environments.
