Manual Workholding Machining Clamps Fixture Idea For Precision CNC Pneumatic Clamp

Non Standard Manual Workholding Fixture Idea for Precision CNC Workholding Clamping

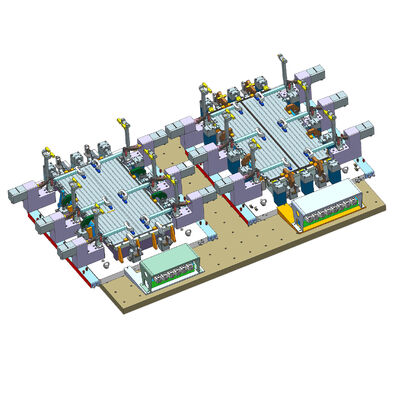

This custom fixture includes multiple precision clamping elements that secure the parts to the base plate during machining. The modular design allows quick adjustments, enabling operators to switch between different part sizes with minimal downtime. The rotary axis supports angular machining operations, such as contouring, drilling, or pocket milling on multiple faces. Each component of the fixture—from clamps to locating modules—is manufactured to tight tolerances, ensuring stable and repeatable workpiece positioning. This configuration enhances productivity, reduces setup time, and provides an effective solution for manufacturing complex mechanical components that require multi-step CNC machining.
