Quick Setup Side Clamping Fixture Precision Holding CNC Fixture

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	CP38-16100-G
Document:	CP1213-3839.pdf

Minimum Order Quantity:	3
Price:	30-42 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:	S45C	Color:	Black
Weight:	1.4 Kg	Heat Treatment:	HRC 38°
Surface Finish:	Blackening Treatment
Highlight:	Quick Setup Side Clamping , Side Clamping S45C , Clamping Fixture CNC Fixture

Product Description

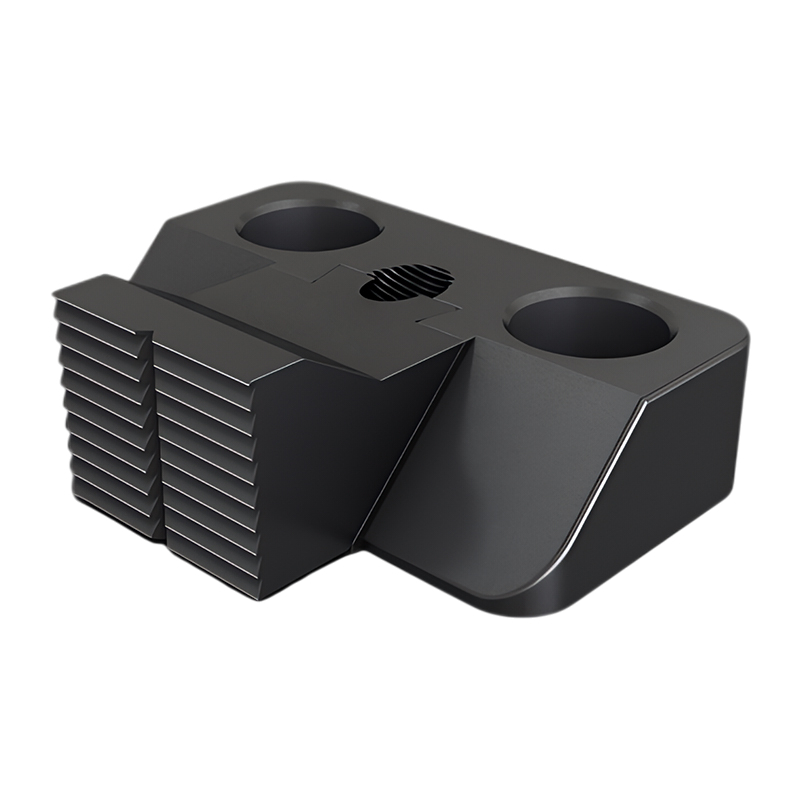

Side Clamping Fixture for Quick Setup Precision Holding CNC Fixture

Material: S45C(JIS) / CK45(DIN),

Heat treated: HRC 38°

Surface finish: Black Oxide.

Application:

Low profile side clamp keeps top surfaces clear for machining, ideal for rough or finished parts, available with plain or serrated jaw.

Clamps and Pulls Down Component

The CP38-ADJUSTABLE SIDE CLAMP is crafted from S45C/CK45, heat-treated to HRC 38, and finished with black oxide. It's designed for low-profile side clamping, keeping top surfaces clear for machining. Suitable for both rough and finished parts, it's available with either plain or serrated jaws, catering to various clamping needs.

Part Number	A	B	C	D	E	F	G	H	1	J	K	L	TYPE	KG
CP38-0865-G	45.14	65	19.5	23	33.5	16	7	40	25	M8	5	7.4	Flat Surface	0.22
CP38-1285-G	65.14	85	29	33	48	22	12	50	35	M12	6	9		0.65
CP38-16100-G	85.64	100	39	48	68	30	14	50	40	M16	8	12.5		1.4
CP38-0865-S	46.45	65	19.5	23	33.5	16	7	40	25	M8	5	7.4	Toothed Surface	0.22
CP38-1285-S	67.14	85	29	33	48	22	12	50	35	M12	6	9		0.65
CP38-16100-S	87.14	100	39	48	68	30	14	50	40	M16	8	12.5		1.4
