Adjustable Side Clamping For Precise Workholding CNC Fixture

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	CP13-0825-G
Document:	CP1213-3839.pdf

Minimum Order Quantity:	3
Price:	30-42 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:	S45C	Color:	Black
Weight:	0.15 Kg	Heat Treatment:	HRC 38°
Surface Finish:	Blackening Treatment
Highlight:	Adjustable Side Clamping , Precise Side Clamping , Black side clamps for milling

Product Description

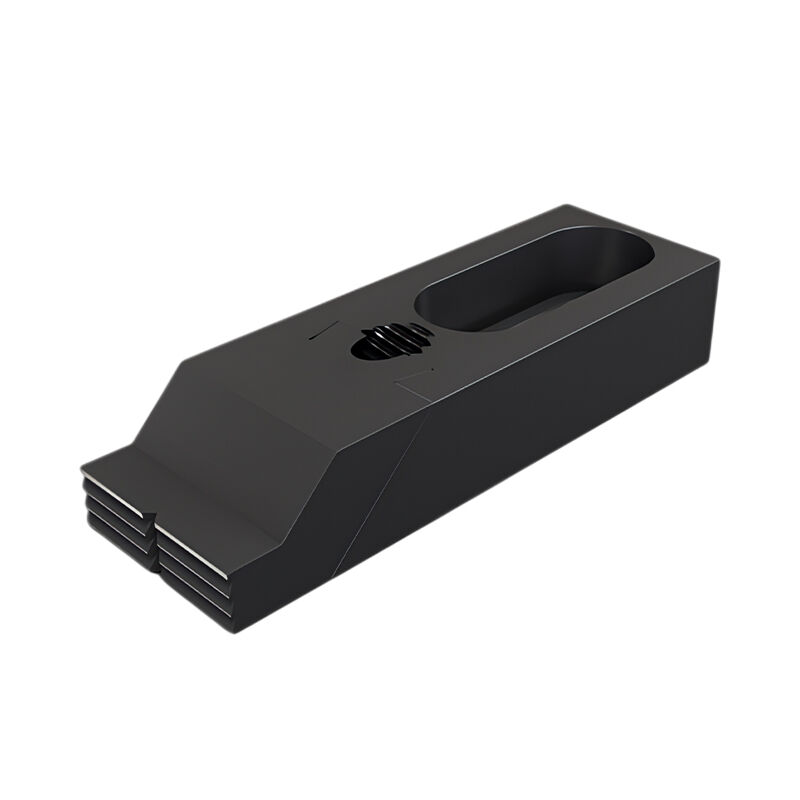

Adjustable Side Clamp For Precise Workholding CNC Fixture

Material: S45C

Heat treated: HRC 38°

Surface finish: Black Oxide.

Application:

Low profile side clamp keeps top surfaces clear for machining, ideal for rough or finished parts, available with plain or serrated jaw.

Clamps and Pulls Down Component

The CP12-ADJUSTABLE SIDE CLAMP is crafted from S45C/CK45, heat-treated to HRC 38, and finished with black oxide. It's designed for low-profile side clamping, keeping top surfaces clear for machining. Suitable for both rough and finished parts, it's available with either plain or serrated jaws, catering to various clamping needs.

Part Number	A	B	C	D	E	F	G	H	J	K	L	TYPE	KG
CP13-0825-G	72	25	8.5	45.5	16.5	16	7	14	8.5	5	7	Flat Surface	0.15
CP13-1235-G	105	35	10.5	62.5	30	22	12	20	13.5	6	9		0.45
CP13-1640-G	133	40	14	80.5	35	30	14	14	17	8	13		0.88
CP13-0825-S	73.5	25	8.5	47	16.5	16	7	7	8.5	5	7	Toothed Surface	0.15
CP13-1235-S	107	35	10.5	64	30	22	12	12	13.5	6	9		0.45
CP13-1640-S	135	40	14	82	35	30	14	14	17	8	13		0.88
