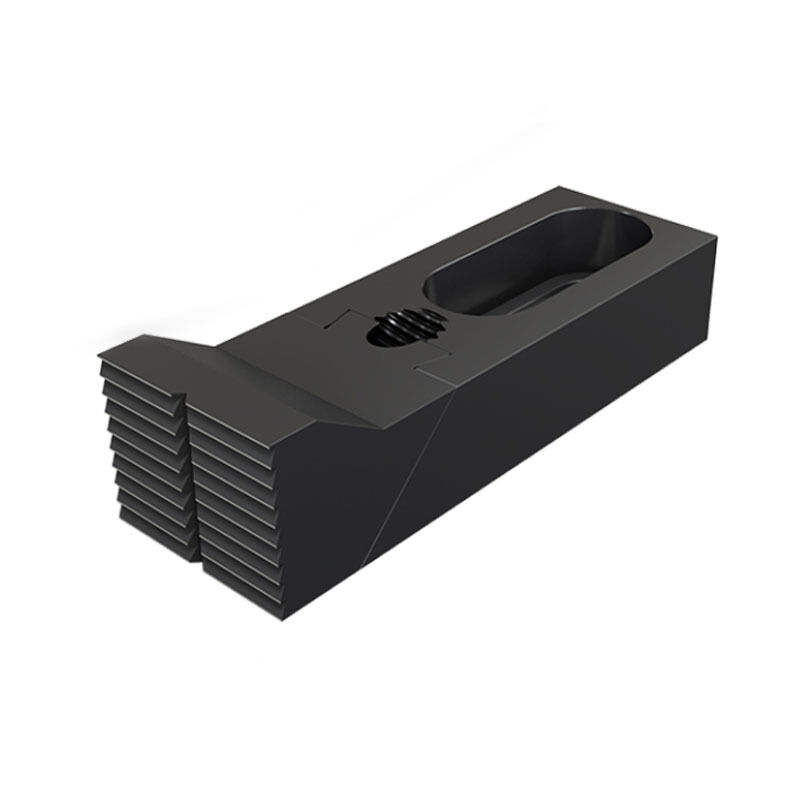

0.52kg Edge Fixture Side Clamp Cnc Side Clamps Low Profile S45C Black
| MOQ: | 3 |
| Price: | 30-42 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days. |
Detail Information
Place of Origin
Chongqing, China
Brand Name
ADJIG
Model Number
CP12-1235-G
Document
Material:
S45C
Color:
Black
Weight:
0.52 Kg
Heat Treatment:
HRC 38°
Surface Finish:
Blackening Treatment
Highlight:
0.52kg Fixture Side Clamp
,Fixture Side Clamp S45C
,cnc side clamps Black
Product Description
Edge Fixture Side Clamp with Low Profile Design for Compact Workholding
Material: S45C
Heat treated: HRC 38°
Surface finish: Black Oxide.
Application:
Low profile side clamp keeps top surfaces clear for machining, ideal for rough or finished parts, available with plain or serrated jaw.
Clamps and Pulls Down Component
The CP12-ADJUSTABLE SIDE CLAMP is crafted from S45C/CK45, heat-treated to HRC 38, and finished with black oxide. It's designed for low-profile side clamping, keeping top surfaces clear for machining. Suitable for both rough and finished parts, it's available with either plain or serrated jaws, catering to various clamping needs.
| Part Number | A | B | C | D | E | F | G | H | J | K | L | TYPE | KG |
| CP12-0825-G | 72 | 25 | 8.5 | 45.5 | 16.5 | 16 | 7 | 14 | 8.5 | 5 | 7 | Flat Surface | 0.18 |
| CP12-1235-G | 105 | 35 | 10.5 | 62.5 | 30 | 22 | 12 | 20 | 13.5 | 6 | 9 | 0.52 | |
| CP13-1640-G | 133 | 40 | 14 | 80.5 | 35 | 30 | 14 | 14 | 17 | 8 | 13 | 1.02 | |
| CP13-0825-S | 73.5 | 25 | 8.5 | 47 | 16.5 | 16 | 7 | 7 | 8.5 | 5 | 7 | Toothed Surface | 0.18 |
| CP13-1235-S | 107 | 35 | 10.5 | 64 | 30 | 22 | 12 | 12 | 13.5 | 6 | 9 | 0.52 | |
| CP13-1640-S | 135 | 40 | 14 | 82 | 35 | 30 | 14 | 14 | 17 | 8 | 13 | 1.02 |
