Double Edge Side Clamping Expanding Micro Edge Clamps For CNC Fixturing Clamping
| MOQ: | 5 |
| Price: | 5 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days. |
Double Edge Side Clamping
,CNC Fixturing Side Clamping
,Clamping Edge Clamps

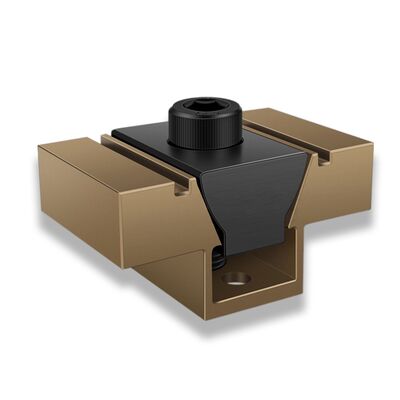

Double Edge Clamps Expanding Micro Clamp for CNC Fixturing Clamping
Fixtures generate powerful lateral forces through a single cam-driven screw, pushing workpieces into fixed rails or locators. Their low-profile design and synchronized jaw movement make them ideal for simultaneously clamping two or more workpieces in confined spaces. Steel jaws can be replaced with machinable aluminum inserts to accommodate custom installation requirements.
Clamping multiple parts | Secure two or more workpieces with a single screw
Back-to-back motion | Jaw synchronized movement to prevent part displacement
High-density fixture | Designed for crowded fixture layouts and small-batch part production
Replaceable jaws | Offers hardened or machinable options
Consistent and repeatable | Reliable and stable clamping force across batches
| MODEL | CLAMPING FORCE (N) | TIGHTENING TORQUE (N.M) | WEIGHT(g) | MAIN BODY | WEDGE BLOCK | |
| AJQ-N | 8.8 | 14.5 | 85 | 6061T6 ANODIZED FILM | 7075 ANODIZED FILM | SUN31L FERRIC OXIDE FILM |
| AJQ-M | 8.8 | 14.5 | 115 | 6061T6 ANODIZED FILM | 7075 ANODIZED FILM | SUN31L FERRIC OXIDE FILM |
