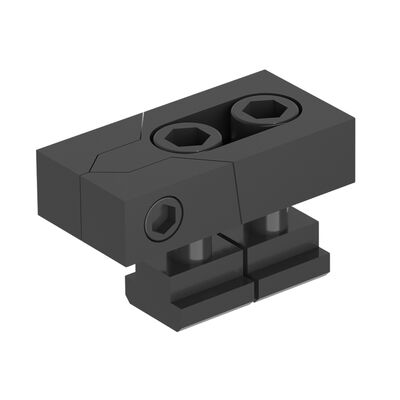

CPLC28 3.35KG Clamping Jaws For Side Fixtures Low-Clearance Design
| MOQ: | 5 |
| Price: | 115-120 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days. |
Detail Information
Place of Origin
Chongqing, China
Brand Name
ADJIG
Model Number
CPLC28
Document
Mounting Type:
Side Clamping
Weight:
3.35KG
Usage:
Holding Workpieces
Application:
CNC Machining
Clamping Force:
Adjustable
Size:
Customized
Material:
Heat Treated Steel
Highlight:
CPLC28 Clamping Jaws
,3.35KG Clamping Jaws
,3.35KG Side Fixture Jaws
Product Description
CPLC28 Clamping Jaws for Side Fixtures Low-Clearance Design
Material
Steel, heat treated,blackened.
Technical Notes
Ideal for clamping low-profile plates. Acutated on one side via hex. key (provided).
Tips
Clamping action is forwards and down-wards into the workpiece.
| Model | W1 | d1 | h1 | l1 | l2 | l3 | Stroke (mm) |
clamping force F1(KN) |
clamping force F2(KN) |
Weight (kg) |
| CPLC12 | 40 | M10 | 20 | 80 | 39 | 26 | 3 | 16 | 0.6 | 0.57 |
| CPLC14 | 40 | M12 | 20 | 80 | 39 | 26 | 3 | 22 | 0.9 | 0.65 |
| CPLC16 | 40 | M12 | 20 | 80 | 39 | 26 | 3 | 22 | 0.9 | 0.65 |
| CPLC17 | 50 | M14 | 25 | 100 | 46 | 34 | 4 | 32 | 1.2 | 1.15 |
| CPLC18 | 50 | M16 | 25 | 100 | 46 | 34 | 4 | 36 | 1.4 | 1.25 |
| CPLC20 | 50 | M16 | 25 | 100 | 46 | 34 | 4 | 36 | 1.4 | 1.3 |
| CPLC22 | 78 | M20 | 30 | 140 | 65 | 50 | 5 | 36 | 1.4 | 3.15 |
| CPLC24 | 78 | M20 | 30 | 140 | 65 | 50 | 5 | 36 | 1.4 | 3.3 |
| CPLC28 | 78 | M24 | 30 | 140 | 65 | 50 | 5 | 40 | 1.6 | 3.53 |
| CPLC30 | 78 | M24 | 30 | 140 | 65 | 50 | 5 | 40 | 1.6 | 3.79 |
