Ball Lock Back Mount Receiver Bushings For Positioning Clamping Pins

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	QSP16020
Document:	Ball Lock-QSP.pdf

Minimum Order Quantity:	1
Price:	36 - 52 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Material:	High-quality Steel	Installation:	Easy To Install And Use
Maintenance:	Low Maintenance Required	Size:	Customizable
Adjustability:	Easily Adjustable For Different Workpieces	Type:	Fixture
Durability:	Long-lasting	Convenience:	Saves Time And Effort In Changing Workpieces
Usage:	Quickly Change Workpieces In A Production Line	Precision:	Ensures Accurate Positioning Of Workpieces
Efficiency:	Increases Production Speed
Highlight:	quick release drill press clamp , quick release drill press clamp , accurate pneumatic vise clamp

Product Description

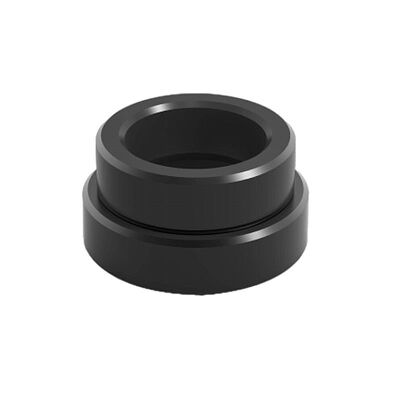

Ball Lock Back Mount Receiver Bushings for Positioning Clamping Pins

Features, Benefits, & Product Specifications:

Material: 4340 Steel
Finish: Black Oxide
Heat Treat: 50-54 RC
Operating Temperature Range: -20°F to 400°F (-30°C to 200°C)

Repetitive positioning accuracy<± 0.013mm;

Ball Lock Back Mount Receiver Bushings are the essential female component for high-precision positioning and clamping systems. Designed for recessed (back mount) installation into fixture plates or machine beds, these hardened bushings provide a durable and accurate interface for ball lock pins. This setup enables rapid, tool-less changes of fixtures or components with exceptional repeatability. By ensuring perfect alignment and rigid clamping in seconds, they drastically reduce setup time and increase machine utilization. Ideal for modular workholding and automated environments, these bushings are a cornerstone for efficient, high-accuracy manufacturing, guaranteeing unwavering stability for your most critical machining applications.

PART NUMBER	ΦD1	ΦD2	ΦD3	ΦD4	ΦM	ΦN	H	H1	WEIGHT(kg)
JT1629	22	16	20.65	28.6	22	29	12.1	7.24	20
JT2032	28	20	24.77	32.2	28	33	17.1	8.4	50
JT2540	35	25	30.35	40.2	35	41	21	10.3	80
JT3048	42	30	36.2	48.2	42	49	21.8	10.7	125
