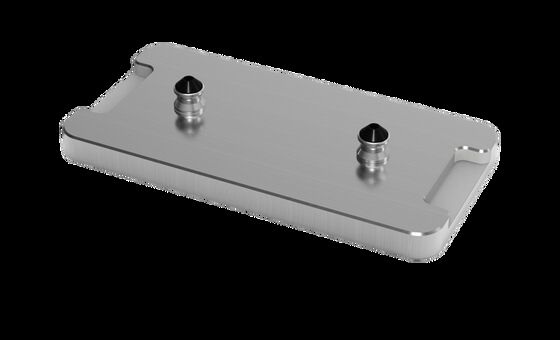

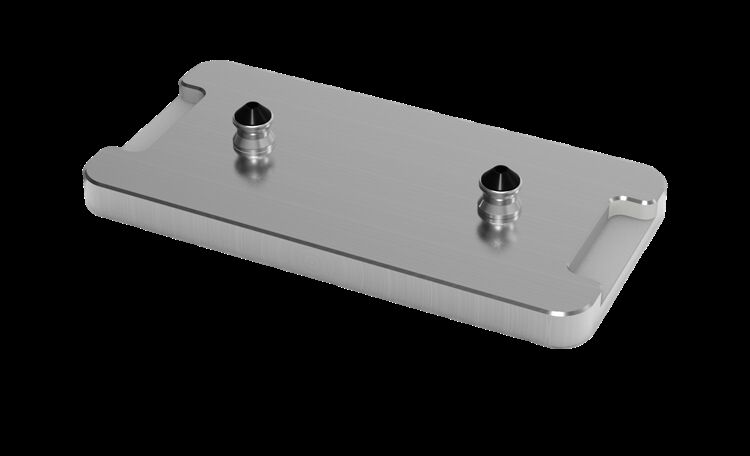

Precision Quick-Change Fixture Locating Plate With Dual Alignment Pins For CNC Workholding
| MOQ: | 1 |
| Price: | 179 - 352 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days. |
workholding zero point positioning
,workholding zero point clamping system
,for cnc zero point positioning
Precision Quick-Change Fixture Locating Plate with Dual Alignment Pins for CNC Workholding
Repeat positioning accuracy:<0.005mm
Material: Die steel
This Precision Quick-Change Fixture Locating Plate revolutionizes CNC workholding efficiency. Featuring dual hardened alignment pins for flawless, repeatable positioning, it enables tool-less fixture changes in seconds. Achieve micron-level accuracy and eliminate manual re-zeroing with every swap. The robust design ensures maximum rigidity, minimizing vibration during high-speed machining. Ideal for high-mix production, this system dramatically reduces downtime between jobs, boosting spindle utilization and overall productivity. Engineered for seamless integration with existing setups, it provides a reliable foundation for complex machining operations, delivering unparalleled speed and precision in your manufacturing workflow.
| Part Number | Size Number | A | B | SM | T |
| 2GWTP-5 | Q5 | 200 | 100 | 100 | 20 |
| 2GWTP-10 | Q10 | 366 | 166 | 200 | 28 |
| 2GWTP-20 | Q20 | 398 | 198 | 200 | 28 |
| 2GWTP-40 | Q40 | 426 | 226 | 200 | 38 |
