Automated Zero Point Clamping Positioning System For CNC Fixture Changeover

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	ANCDZ-2S
Document:	ANCDZ-2S.pdf

Minimum Order Quantity:	1
Price:	345 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Unlock Method:	Pneumatic Pressure	Clamping Force (KN):	17
Tensile Force (KN):	55	Blow:	✔
Weight (kg):	2.6	Repeatability（mm）:	0.005
Material:	Hardened Stainless Steel	Service Life:	One Million Times
Highlight:	Automated zero point clamping , 17KN zero point clamping , 17KN Zero Point Positioning

Product Description

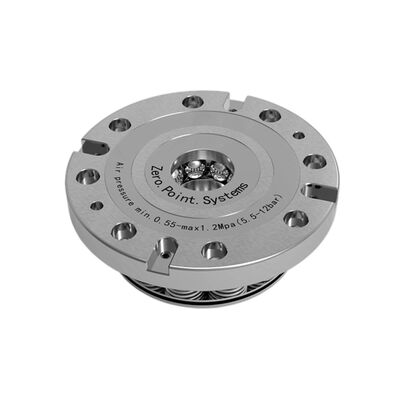

Flange-Type Automated Zero-Point Positioning System for CNC Fixture Changeover

Product Features:
1. Pneumatic unlocking, spring mechanical locking; Material: hardened stainless steel

2. Repeat positioning accuracy <0.005MM
3. Double-sided constraint, high precision
4. Includes a central air blowing interface to prevent iron filings from entering. Applicable Industries
Suitable for the automation industry

Suitable for quick-change fixtures

Part Number	Size Number	Unlock Method	Clamping Force (KN)	Tensile Force (KN)	Chip Blowing	Weight (kg)
ANCDZ-2S	Q2S	Pneumatic Pressure	1.25	5	√	0.19

Size Number	φDN	φD1	φD2	φD3	H (±0.005)	H1	M	K
Q2S	50	14	37	42	12	8	M3	7.5

Automated Zero Point Clamping Positioning System For CNC Fixture Changeover 0
