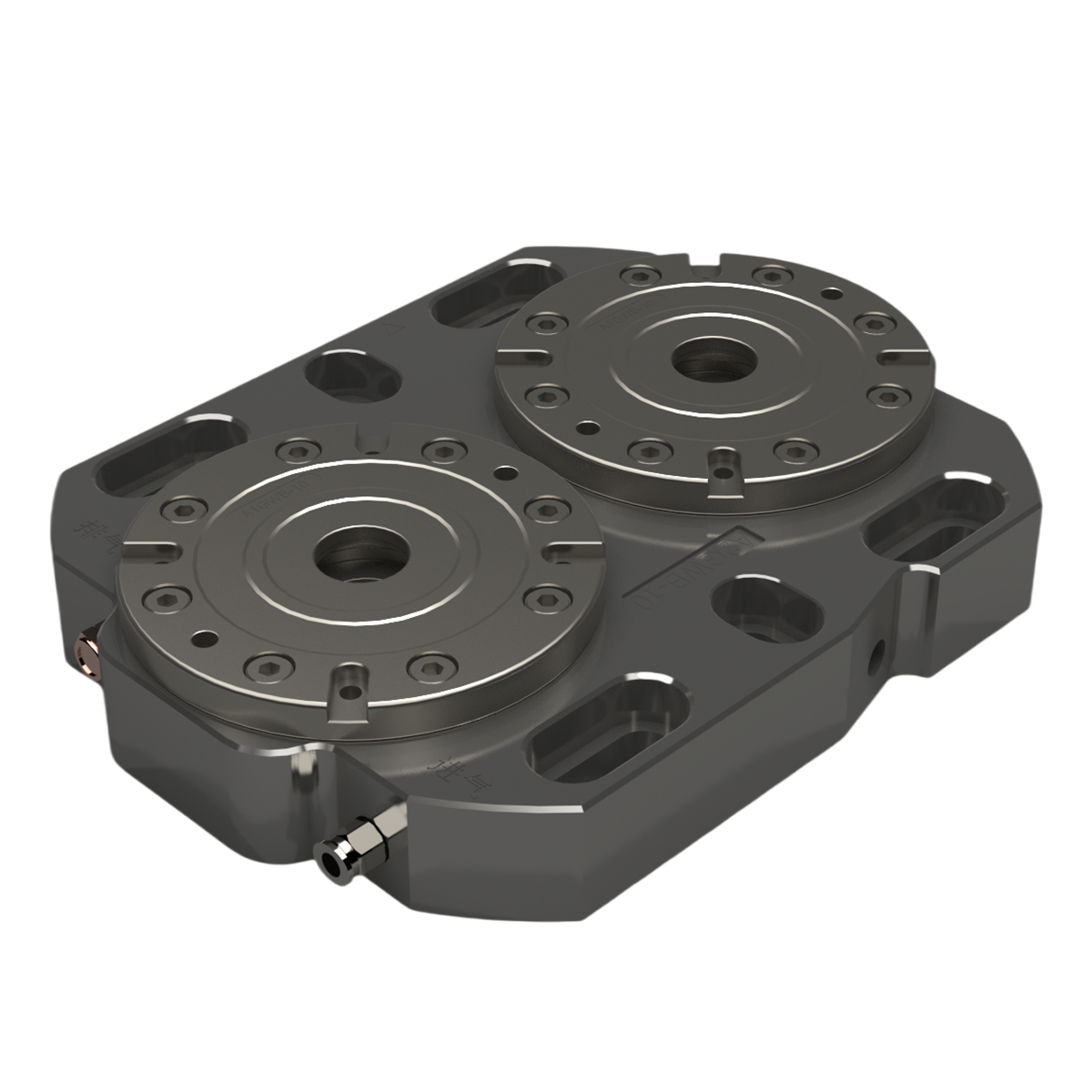

Dual Position Zero Point Clamping System Work Holding Pneumatic Base Plate For CNC
| MOQ: | 1 |
| Price: | 828 - 1200 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
Dual Position Zero Point Clamping System
,Zero Point Clamping System Pneumatic
,Pneumatic zero point work holding
Dual-Position Pneumatic Zero-Point Base Plate for Multi-Fixture CNC Workholding
Product Features:
1. Pneumatic unlocking. Spring-loaded mechanical lock system; Material: Hardened stainless steel:
2. Surface and piston hardened treatment;
3. Repeat positioning accuracy <0.005 mm;
4. Pressure source can be disconnected during use. Clamping force remains stable.
5. The exhaust port is generally not used; it can be used for pressurization when required.
6. This model does not include airtightness testing; customization is available if airtightness testing is required.
7. This model can be directly used for three-axis, four-axis, and five-axis installations. The unlocking port is designed for
four-axis installations and does not require a rotary oil distributor.
| Model | Dimensions | Flatness | Repeat Positioning Accuracy | Clamping Force (kN) | Body Material | Locator Material | Boost Function | Air-tightness Test | Weight (KG) |
| A2GWB-10 | 236×180×43 | ≤0.01 | ≤0.005 | 2×10 | Hardened Tool Steel | Hardened Stainless Steel | Built-in | Customizable | 9 |
| A2GWB-20 | 316×230×58 | 2×17 | 26 |
