| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | ADJIG |
| Model Number: | JGLS |
| Document: | Pull Stud.pdf |
| Minimum Order Quantity: | 1 |
| Price: | 5.52 - 8.28 USD per item |
| Packaging Details: | Carton/wooden crate |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
| Model: | JGLS | Hardness: | 12.9 |
|---|---|---|---|
| Length(mm): | 23/30/37/50/65 | L1(mm): | 3.5/5/6/8/10 |
| M: | M6/M8/M8/M12/M16 | Weight (kg): | 5/13/20/63/135 |
| Highlight: | 30mm zero clamping system,37mm zero clamping system,M16 ZPS Engagement Screws |
||

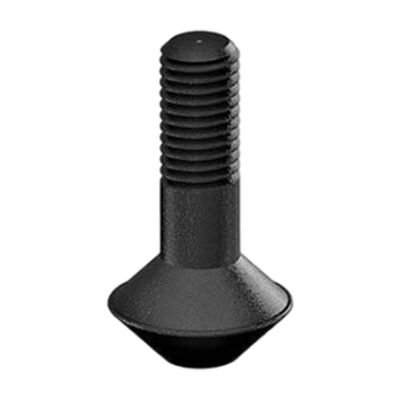

High-Precision ZPS Engagement Screws for Zero-Point Fixture Clamping Systems
Product features:
Hardened treatment increases tension force to ensure complete positioning of the pallet and
prevent over-positioning: Suitable for straight column ball lock type zero positioning devices.
These High-Precision ZPS Engagement Screws are critical components for zero-point fixture clamping systems, engineered to deliver exceptional repeatability and secure locking. Manufactured from premium hardened steel with exacting tolerances, they ensure perfect engagement with zero-point receiver bushings for vibration-free machining. Each screw provides consistent clamping force and reliable performance through thousands of cycles, maintaining micron-level accuracy. The optimized thread design enables smooth operation and extended service life, while the precision-machined contact surfaces guarantee full surface contact for maximum stability. Essential for maintaining positioning accuracy in quick-change fixture systems, these screws directly contribute to reduced setup times and improved machining precision in high-volume production environments.
| Part Number | Size Number | L | L1 | M | Weight (g) |
| JGLS-2 | Q2 | 23 | 3.5 | M6 | 5 |
| JGLS-5 | Q5 | 30 | 5 | M8 | 13 |
| JGLS-10 | Q10 | 37 | 6 | M8 | 20 |
| JGLS-20 | Q20 | 50 | 8 | M12 | 63 |
| JGLS-40 | Q40 | 65 | 10 | M16 | 135 |
![]()
