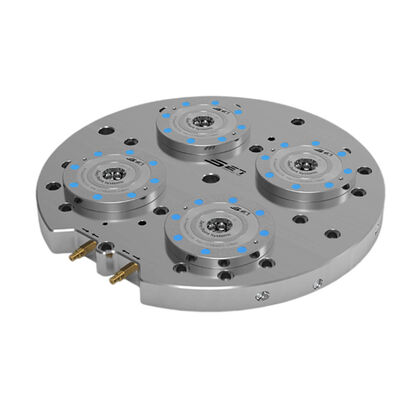

4 Module Zero Point Clamping System Round Pneumatic Base Plate Mounting System

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	Q4GWYB-5/Q4GWYB-10/Q4GWYB-20
Document:	Q4GWYB.pdf

Minimum Order Quantity:	1
Price:	359 - 2317 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Unlock Method:	Air Pressure Unlocking, Spring Mechanical Locking	Repeatability:	＜0.005mm
Unlock Method:	Pneumatic	Tensile Force (KN):	4×13/4×25/4×55
Weight (kg):	10 /25.7/53.7
Highlight:	4 Module Zero Point Clamping System , Zero Point Clamping System Round , Pneumatic zero point mounting system

Product Description

ZPS 4-Module Round Pneumatic Zero-Point Base Plate for CNC Fixtures Multi-Workpiece Positioning

Product Features:
Pneumatic unlocking, mechanical locking
Material: Mold steel (or customer's choice) Surface and piston hardened
Repeat positioning accuracy <0.005MM
Locked onto T-slot via countersunk holes on substrate for easy installation;
At least two locating holes for accurate positioning.
Applicable Industries: Suitable for metal or non-metal cutting fields Suitable for five-axis CNC machine tool processing.

Part Number	Size Number	Unlock Method	Clamping Force (KN)	Tensile Force (KN)	Chip Blowing	Weight (kg)
Q4GWYB-5	Q5	Pneumatic	4×5	4×13	√	10
Q4GWYB-10	Q10	Pneumatic	4×10	4×25	√	25.7
Q4GWYB-20	Q20	Pneumatic	4×17	4×55	√	53.7

Size Number	φA	B	φC	φD	φE	φE1	F	G	H	H1	l	1	2	3	R
Q5	142	/	228	250	11.5	6.5	/	/	26	8.5	/	/	/	60°	G1/8
Q10	200	300	300	360	20	12.5	100	100	32	10	150	30°	45°	60°	G1/8
Q20	260	300	400	470	20	12.5	200	11.6	38	15	150	30°	45°	60°	G1/4

4 Module Zero Point Clamping System Round Pneumatic Base Plate Mounting System 0
