230g CNC Fixture Manual Zero Point Clamping System Directional Pins
| MOQ: | 1 |
| Price: | 71 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
230g Zero Point Clamping System
,Directional Pins M16
,steel manual zero point clamping

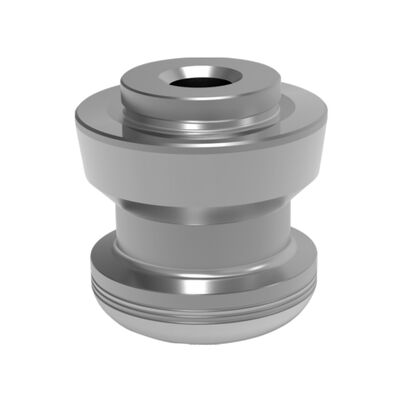

Durable Directional Pins for LQ-138M Zero-Point Positioning System CNC Fixture
Product Features:
1. High precision, hardened treatment
2. Restricts freedom in the X and Y directions Suitable for LO-138M zero position system
Ensure flawless alignment and unmatched longevity with these Durable Directional Pins, engineered specifically for the LQ-138M Zero-Point Positioning System. Manufactured from high-grade, hardened steel, these pins are built to withstand repeated use and high clamping forces, guaranteeing exceptional wear resistance. They provide critical radial location, eliminating any lateral movement and ensuring micron-level repeatability with every fixture change. By securing perfect positioning, these robust pins are essential for maintaining the speed, accuracy, and reliability of your CNC workholding setup, directly contributing to reduced downtime and consistently precise machining outcomes in demanding production environments.
| Part Number | Size Number | Matching Locator Model | φDN | φD1 | φD2 | H1 | M | Weight (g) |
| SPA-40-16RF | 138M | 138M | 25 | 36.6 | 40 | 35 | M16 | 230 |
| SPB-40-16RF | 138M | 138M | 25 | 36.6 | 40 | 35 | M16 | 230 |
| SPC-40-16RF | 138M | 138M | 25 | 36.6 | 39.8 | 35 | M16 | 230 |
