Pneumatic Zero Point Clamping System Stainless Steel Quick-Change

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	ANC
Document:	ANC.pdf

Minimum Order Quantity:	1
Price:	276 - 1034 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Unlock Method:	Pneumatic Pressure	Clamping Force (KN):	17
Tensile Force (KN):	55	Blow:	✔
Weight (kg):	2.6	Repeatability（mm）:	0.005
Material:	Hardened Stainless Steel	Service Life:	One Million Times
Highlight:	pneumatic zero point positioning , pneumatic zero point clamping system , stainless steel zero point positioning

Product Description

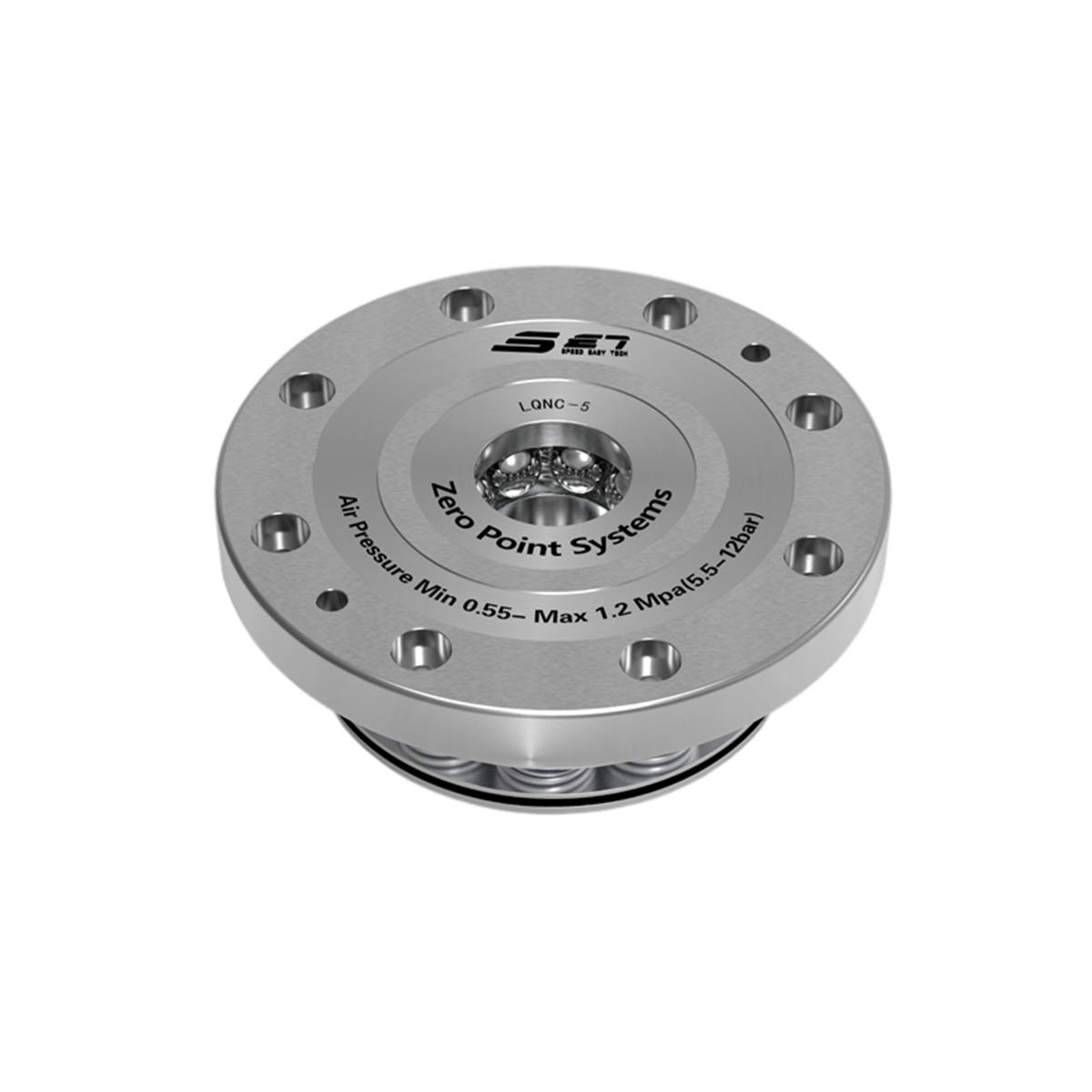

High-Precision Pneumatic Stainless Steel Quick-Change Zero-Point Clamping System

Product Features:
1. Pneumatic unlocking, spring mechanical locking; Material: hardened stainless steel

2. Repeat positioning accuracy <0.005MM
3. Double-sided constraint, high precision
4. Includes a central air blowing interface to prevent iron filings from entering. Applicable Industries
Suitable for the automation industry

Suitable for quick-change fixtures

Part Number	Size Number	Unlock Method	Clamping Force (KN)	Tensile Force (KN)	Chip Blowing	Weight (kg)
ANCZ-10	Q10	Pneumatic Pressure	10	25	√	1.4
ANCZ-20	Q20	Pneumatic Pressure	17	55	√	2.7

Size Number	φD1	φD2	φD3	C	H	H1 (±0.005)	H2	M	E (H7)	F
Q10	112	22	13	8.5	40	10	30	M6	78	92
Q20	138	32	18	8.5	53	15	38	M6	102	115
