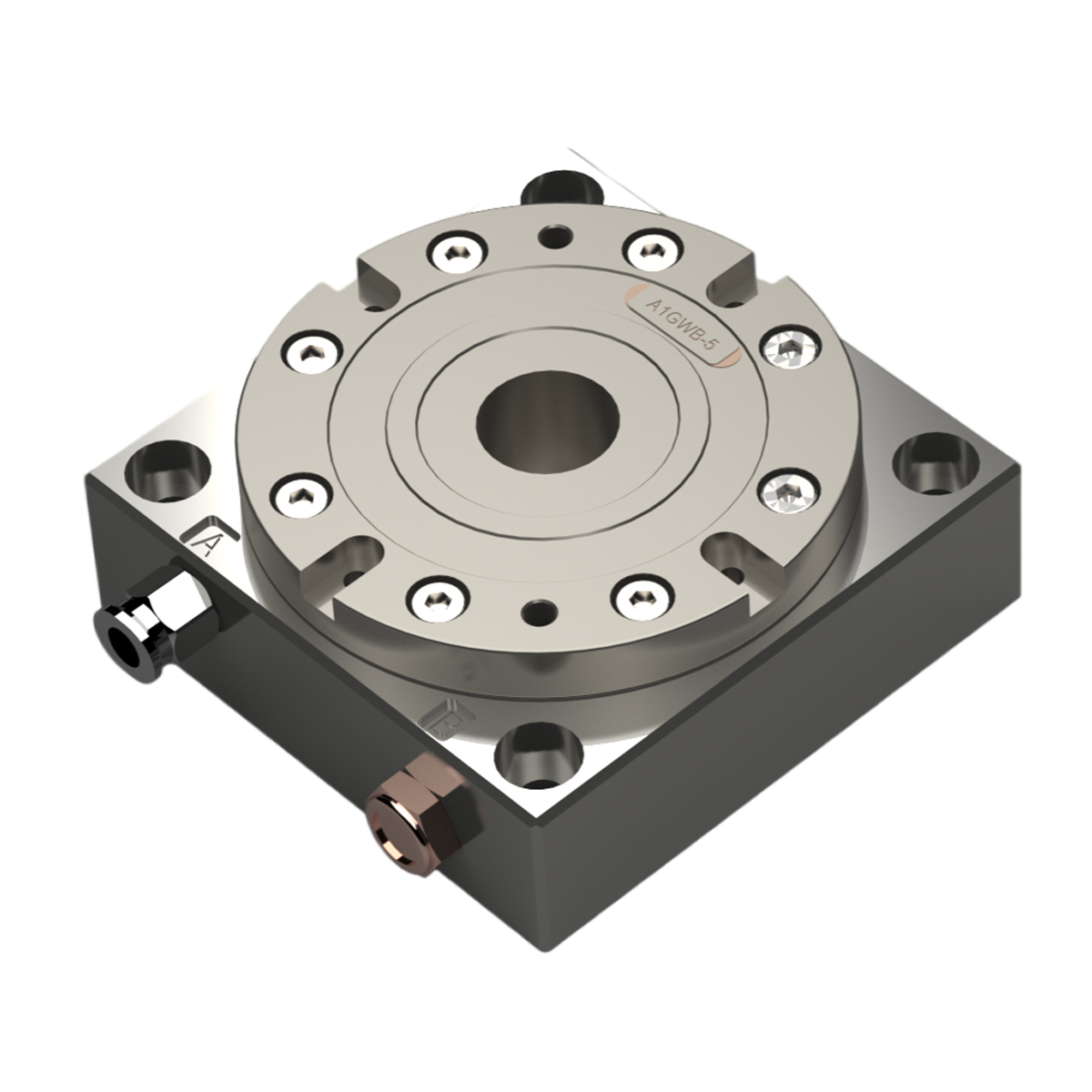

5KN Pneumatic Zero Point Base Plate For High Precision CNC Fixture Positioning
| MOQ: | 1 |
| Price: | 441 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
5KN pneumatic zero point positioning
,pneumatic zero point clamping system
,positioning zero point clamping system
Single-Position Pneumatic Zero-Point Base Plate for High-Precision CNC Fixture Positioning
Product Features:
1. Pneumatic unlocking. Spring-loaded mechanical lock system; Material: Hardened stainless steel:
2. Surface and piston hardened treatment;
3. Repeat positioning accuracy <0.005 mm;
4. Pressure source can be disconnected during use. Clamping force remains stable.
5. The exhaust port is generally not used; it can be used for pressurization when required.
6. This model does not include airtightness testing; customization is available if airtightness testing is required.
7. This model can be directly used for three-axis, four-axis, and five-axis installations.
The unlocking port is designed for four-axis installations and does not require a rotary oil distributor.
| Dimensions | Flatness | Repeat Positioning Accuracy | Clamping Force | Weight | Scale |
| 84x84×33.5 | ≤0.01 | ≤0.008 | 5KN | ||
| 2KG | 1:1 | ||||
| Body Material | Locator Material | Boost Function | Air-tightness Test | ||
| Hardened Tool Steel | Hardened Stainless Steel | Built-in | Customizable | AIGWB-5 | |
