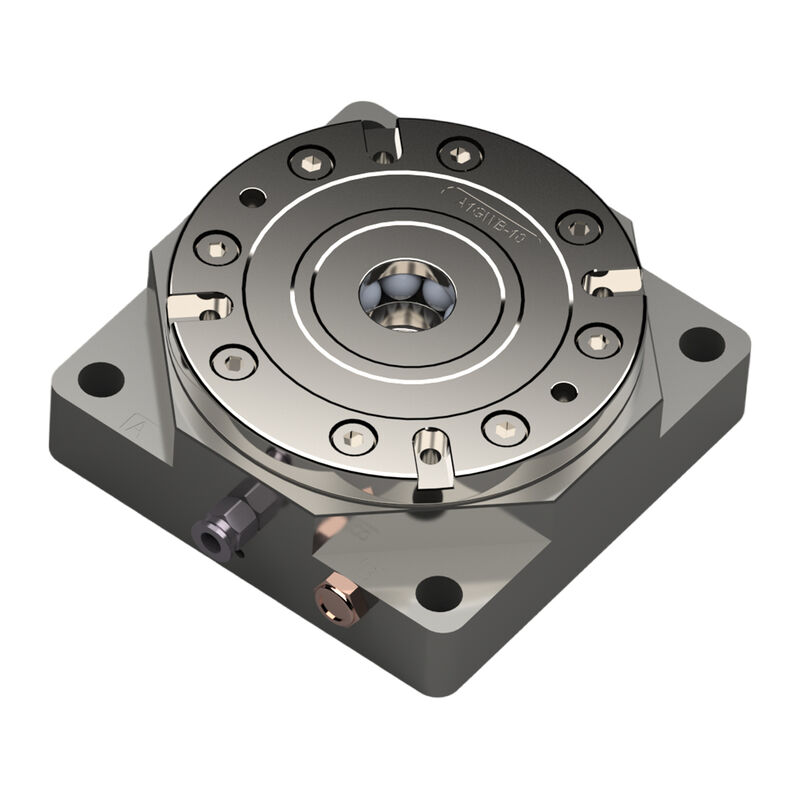

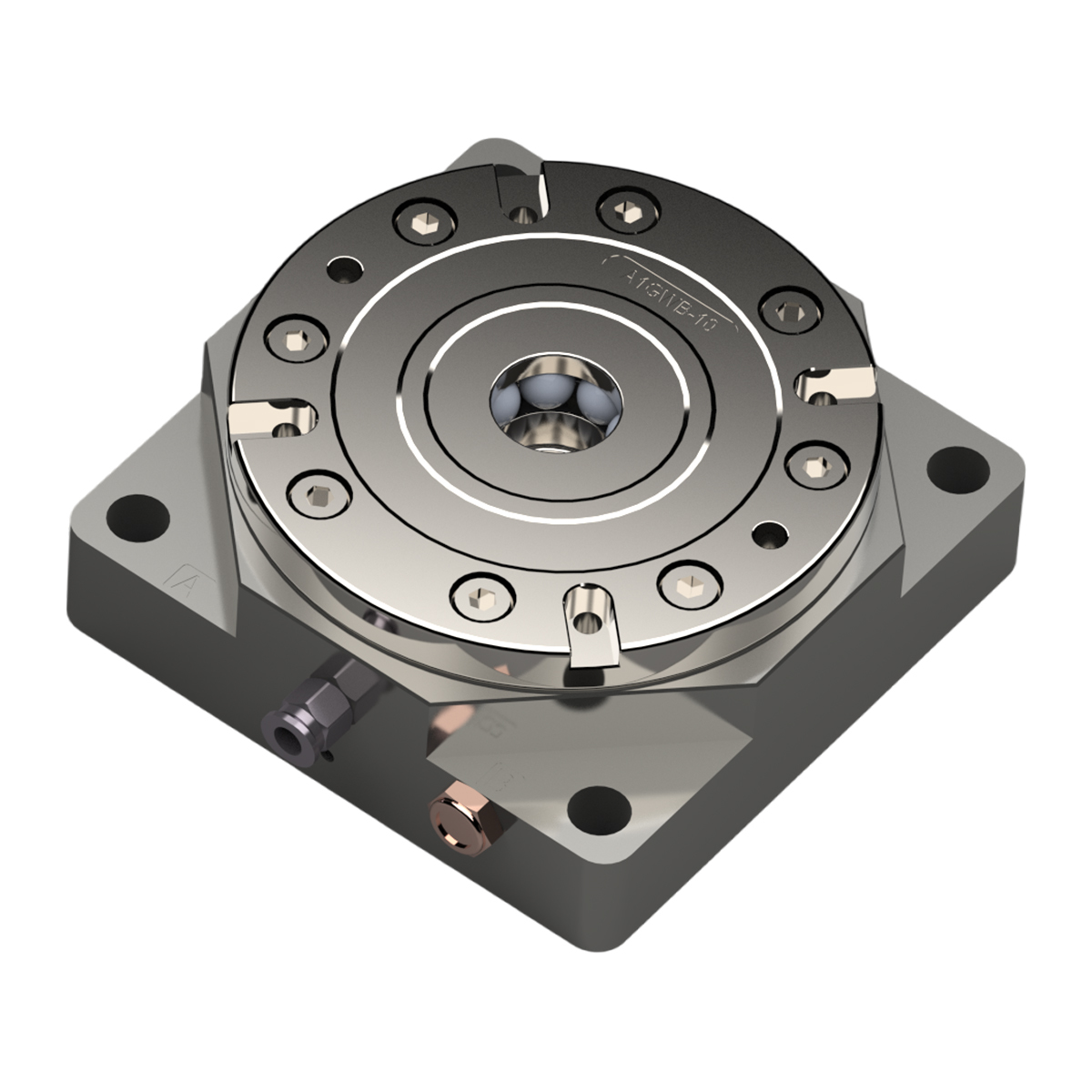

84mm Single Position Pneumatic Zero-Point Base Plate For CNC Fixtures
| MOQ: | 1 |
| Price: | 510 - 938 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
84mm pneumatic zero point positioning
,pneumatic zero point clamping system
,Stainless Steel cnc zero point positioning
High-Precision Single-Position Pneumatic Zero-Point Base Plate for CNC Fixtures
Product Features:
1. Pneumatic unlocking. Spring-loaded mechanical lock system; Material: Hardened stainless steel:
2. Surface and piston hardened treatment;
3. Repeat positioning accuracy <0.005 mm;
4. Pressure source can be disconnected during use. Clamping force remains stable.
5. The exhaust port is generally not used; it can be used for pressurization when required.
6. This model does not include airtightness testing; customization is available if airtightness testing is required.
7. This model can be directly used for three-axis, four-axis, and five-axis installations.
The unlocking port is designed for four-axis installations and does not require a rotary oil distributor.
| Model | Dimensions | Flatness | Repeat Positioning Accuracy | Clamping Force (kN) | Body Material | Locator Material | Boost Function | Air-tightness Test | Weight (KG) |
| A1GWB-10 | 120×120×48 | ≤0.01 | ≤0.008 | 10 | Hardened Tool Steel | Hardened Stainless Steel | Built-in | Customizable | 6 |
| A1GWB-20 | 152×152×70 | 17 | 11 | ||||||
| A1GWB-40 | 180×180×83 | 40 | 22 |
