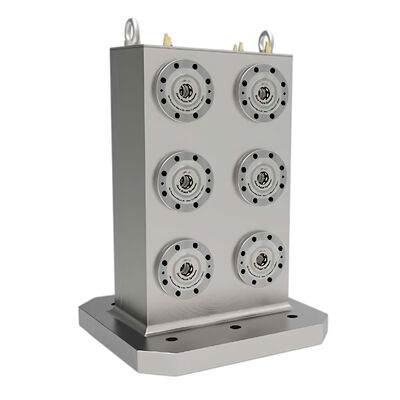

Multi Sided CNC Workholding Fixture For Zero-Point Clamping
| MOQ: | 1 |
| Price: | 11255 - 12510 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
workholding zero point positioning
,workholding zero point clamping system
,pneumatic zero point positioning
High-Precision Multi-Sided CNC Workholding Fixture for Zero-Point Clamping
Product Features:
Pneumatic unlocking, mechanical lock system;
Material: HT300: Surface and piston hardened;
Repeat positioning accuracy <0.005MM.
Applicable Industries Suitable for metal or non-metal cutting fields;
suitable for horizontal CNC machine tool processing.
This high-precision multi-sided CNC workholding fixture revolutionizes complex part machining through integrated zero-point clamping technology. Engineered for unparalleled accuracy, it enables complete five-axis access to components in a single setup while maintaining micron-level repeatability. The system's quick-change capability allows complete fixture changes in under 30 seconds, dramatically reducing non-cutting time between operations. Its robust construction ensures maximum rigidity during aggressive machining, eliminating vibration and guaranteeing superior surface finishes. Ideal for manufacturing complex geometries, this versatile solution significantly increases spindle utilization and throughput while maintaining exceptional positioning accuracy across all machining faces.
| Part Number | Size Number | Unlock Method | Clamping Force (KN) |
Tensile Force (KN) |
Chip Blowing | Weight (kg) |
| Q6LZ-10 | Q10 | Pneumatic Pressure | (2×)6×10 | (2×)6×25 | √ | 228 |
| Q6LZ-20 | Q20 | Pneumatic Pressure | (2×)6×17 | (2×)6×55 | √ | 272 |
| Part Number | A | B | C | Φ D | E | F | G | H | K |
| Q6LZ-10 | 168 | 144 | 304 | 110 | 160 | 160 | 548 | 72 | 32 |
| Q6LZ-20 | 210 | 180 | 380 | 138 | 200 | 200 | 685 | 90 | 40 |
