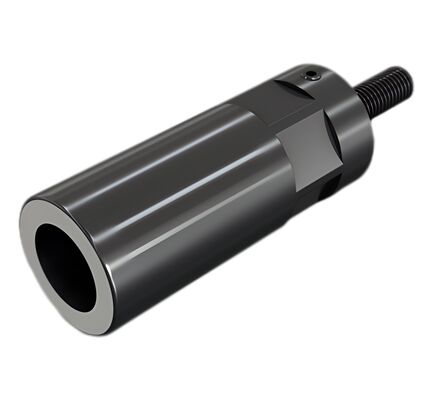

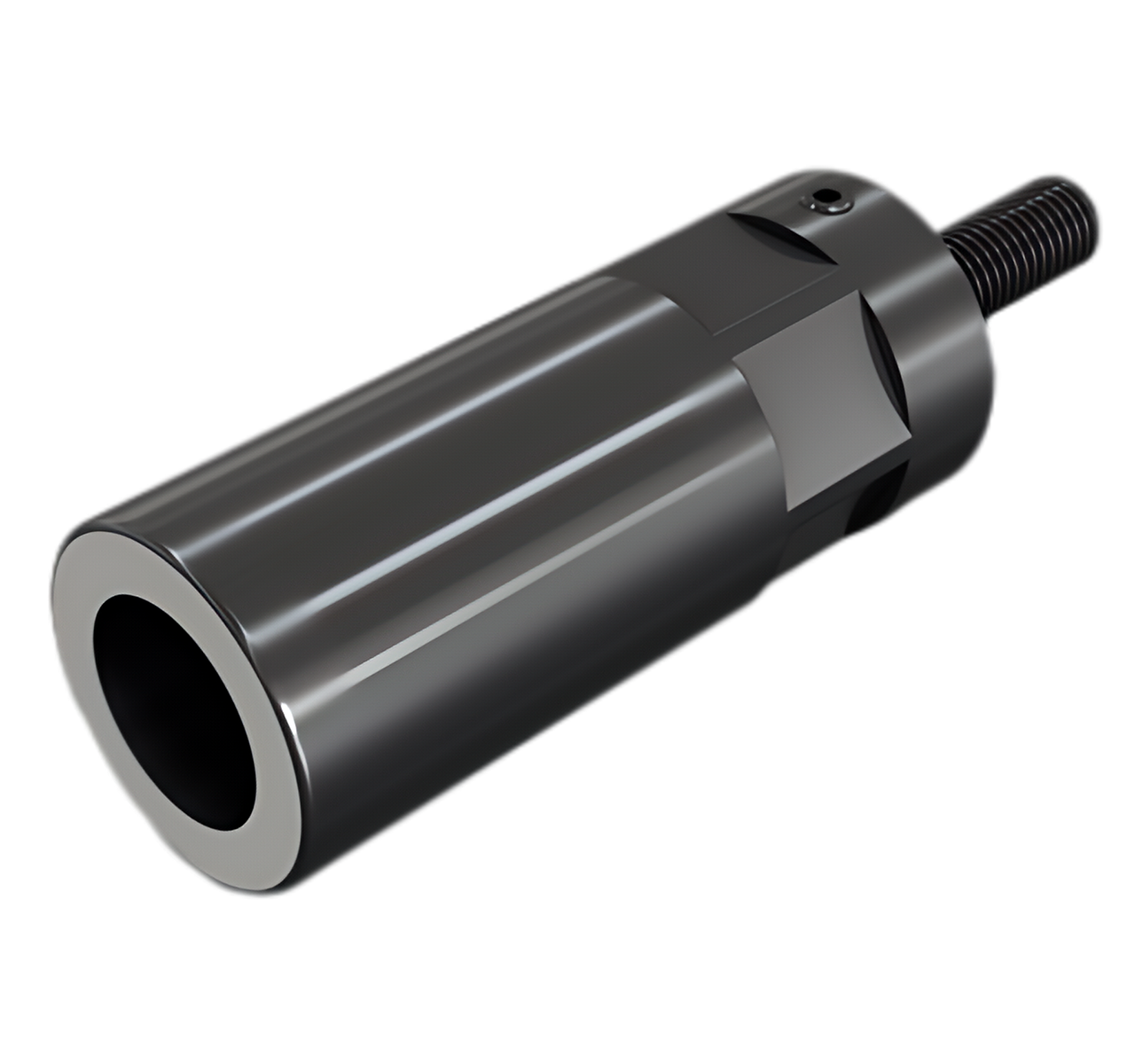

Swing Clamp Heat-Treated S45C Steel with Black Oxide Finish for Workholding CNC Fixtures
| MOQ: | 5 |
| Price: | 28-56 USD per item |
| Standard Packaging: | Carton/Wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days. |
s45c slotted mould clamp
,s45c fixture clamping pressure plate
,steel slotted mould clamp
Swing Clamp Heat-Treated S45C Steel with Black Oxide Finish for Workholding CNC Fixtures
Material: S45C
Heat Treatment: HRC 38°-42°
Surface Finish: Blackened
Features: Forms a clamping fixture with CP10, mounted on a base for holding workpieces.
Engineered for exceptional durability and performance, this Swing Clamp features a robust body made from heat-treated S45C steel, ensuring maximum strength and long-term reliability in demanding CNC workholding applications. The smooth, pivoting arm action allows for rapid loading and unloading of workpieces, drastically reducing non-cutting time. The protective black oxide finish provides superior corrosion resistance and reduces maintenance needs. Ideal for automated fixtures, this heavy-duty clamp delivers consistent, powerful clamping force with pinpoint accuracy, making it an indispensable component for maximizing productivity and precision in high-volume machining environments.
| Model No. | A | B | C | D | E | F | G | H | Weight(kg) |
| CP09-12080 | 80 | 25 | 36 | 40 | 110 | M12 | M12 | 40 | 0.6 |
| CP09-12100 | 100 | 130 | 0.78 | ||||||
| CP09-16080 | 80 | 32 | 46 | 50 | 110 | M16 | M16 | 40 | 0.83 |
| CP09-16100 | 100 | 130 | 1.25 |
