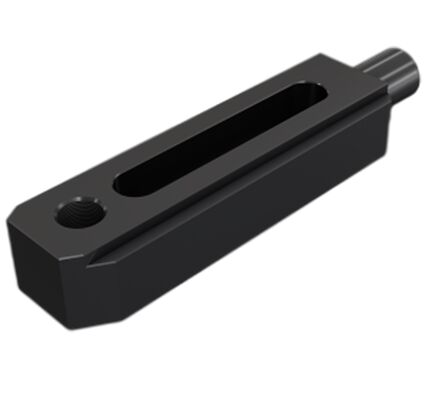

S45C Blackened Fixture Clamping Pressure Plate Durable Tapped Heel Clamp Strap
| MOQ: | 5 |
| Price: | 42-84 USD per item |
| Standard Packaging: | Carton/Wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days. |
S45C Fixture Clamping Pressure Plate
,Blackened Fixture Clamping Pressure Plate
,versatile Tapped Heel Clamp Strap
Durable Tapped-Heel Clamp Strap for CNC Milling Machining Workholding Fixtures
Material: S45C
Heat Treatment: HRC 32°-38°
Surface Finish: Blackened
Advantages: The pressure point features a circular hole, making it most suitable for concave surfaces or curved areas.
Engineered for robust performance in demanding machining environments, this Durable Tapped-Heel Clamp Strap delivers secure and versatile workholding. The unique tapped-heel design provides a positive location point for easy and precise setup, ensuring maximum stability during heavy milling operations. Forged from high-strength steel, it offers exceptional resistance to bending and deformation, guaranteeing long-lasting reliability. Its low-profile design maximizes tool clearance while the strap accommodates a wide range of workpiece heights. An essential component for any CNC fixture, it ensures vibration-free clamping, reduces setup time, and enhances both safety and machining precision for superior results.
| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | Weight(kg) |
| CP02-12150 | 150 | 38 | 15 | 20 | 70 | 25 | 30 | 18 | 13 | 22 | 7 | M12 | 0.58 |
| CP02-16150 | 150 | 48 | 20 | 25 | 40 | 35 | 40 | 24 | 17 | 32 | 5 | M16 | 1.12 |
| CP02-16200 | 200 | 90 | 1.5 | ||||||||||
| CP02-20200 | 200 | 60 | 30 | 35 | 60 | 40 | 50 | 26 | 21 | 35 | 6 | M20 | 2.22 |
| CP02-20250 | 250 | 110 | 2.74 |
