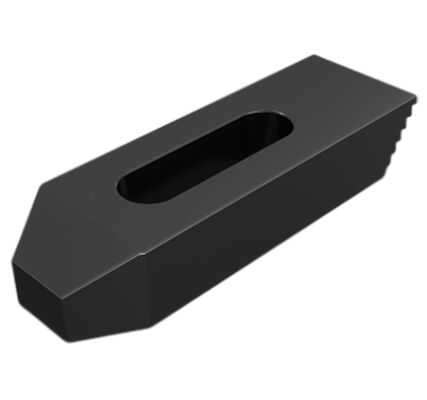

S45C CP25 Step Clamp For Workpiece Clamping Milling Machining
| MOQ: | 5 |
| Price: | 42-84 USD per item |
| Standard Packaging: | Carton/Wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days. |
S45C Step Clamp
,CP25 step clamp set
,step block and clamp set Blackened finish
Durable Step Clamp for Reliable Workpiece Fixture Clamping Milling Machining
Material: S45C
Heat Treatment: HRC 32°-38°
Surface: Blackened finish
for use with PT29 Suitable for unidirectional compression
Engineered for robust performance, this Durable Step Clamp set delivers unwavering reliability for all your milling and machining workholding needs. Forged from hardened steel, these clamps provide exceptional strength to securely anchor workpieces to T-slots, preventing any movement under heavy cutting forces. Their versatile step design allows for quick height adjustment and accommodates a wide range of part sizes, ensuring maximum fixture flexibility. The efficient, low-profile design optimizes tool clearance while simplifying setup. An indispensable component for any machining workshop, this clamp set guarantees secure, vibration-free clamping—enhancing both operational safety and machining precision for superior results.
| Model No. | A | B | C | D | E | F | Weight(kg) |
| CP25-10063 | 13 | 25 | 63 | 11 | 18 | 19 | 0.100 |
| CP25-10100 | 16 | 25 | 100 | 27 | 37 | 0.215 | |
| CP25-10150 | 19 | 32 | 150 | 30 | 50 | 0.570 | |
| CP25-12063 | 13 | 25 | 63 | 13 | 20 | 14 | 0.100 |
| CP25-12100 | 19 | 32 | 100 | 29 | 34 | 0.320 | |
| CP25-12150 | 22 | 32 | 150 | 32 | 50 | 0.650 | |
| CP25-14063 | 13 | 25 | 63 | 15 | 20 | 14 | 0.100 |
| CP25-14100 | 19 | 32 | 100 | 29 | 34 | 0.351 | |
| CP25-14150 | 22 | 32 | 150 | 32 | 50 | 0.600 | |
| CP25-16063 | 16 | 32 | 63 | 17 | 22 | 12 | 0.160 |
| CP25-16100 | 19 | 38 | 100 | 31 | 26 | 0.400 | |
| CP25-16150 | 22 | 38 | 150 | 40 | 47 | 0.710 |
