Moulding Fixture Clamping Pressure Plate Slotted Mould Clamp for CNC Workholding

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Certification:	42-98 USD per item
Model Number:	CP06
Document:	CP06.pdf

Minimum Order Quantity:	5
Packaging Details:	Carton/Wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Model:

Material:

Heat Treatment:

HRC 32°-38°

Surface Finish:

Blackened

Highlight:

Moulding Fixture Clamping Pressure Plate

CNC Fixture Clamping Pressure Plate

Workholding Slotted Mould Clamp

Product Description

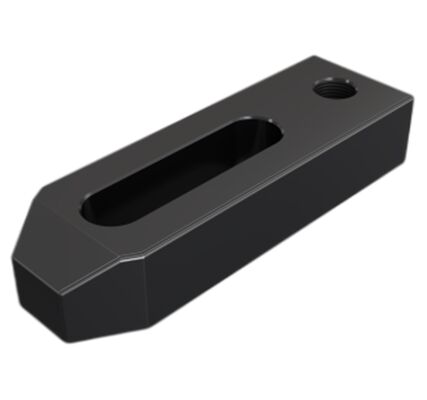

Slotted Mould Clamp for Precision Moulding Flexible CNC Fixture Workholding

Material: S45C
Heat Treatment: HRC 32°-38°
Surface Finish: Blackened
For use with PT29, suitable for one-way clamping applications.

Engineered for complex mould and die work, this Slotted Mould Clamp offers unparalleled flexibility in CNC fixture workholding. Its unique elongated slot allows for versatile positioning and a lower clamping profile, providing maximum tool clearance for intricate 3D machining operations. The forged, hardened steel construction delivers exceptional strength and durability, ensuring a secure hold without damaging delicate workpiece surfaces. This tool-free clamp enables rapid setup and adjustment, drastically reducing non-cutting time while guaranteeing precision and repeatability. An essential component for any high-precision machining cell dealing with complex geometries and demanding tolerances.

Model No.	A	B	C	D	E	F	G	H	Weight(kg)
CP06-12065	65	32	19	32	14	52	13	M12	0.22
CP06-12080	80			48	25	69			0.27
CP06-12100	100			60	40	89			0.33
CP06-16080	80	38	19	40	17	65	17	M16	0.32
CP06-16100	100		25	55	30	85			0.53
CP06-16125	125		25	70	45	110			0.65
CP06-20150	150	50	25	82	50	134	21	M20	1.10
CP06-20200	200	50	32	112	80	184	21	M20	1.90
