Heavy-Duty Slotted Mould CNC Fixure Clamp for Secure Adjustable Workholding

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	CP05
Document:	CP05.pdf

Minimum Order Quantity:	5
Price:	42-84 USD per item
Packaging Details:	Carton/Wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:

Heat Treatment:

HRC 32°-38°

Surface Finish:

Blackened

Highlight:

cnc slotted mould clamp

cnc fixture clamping pressure plate

workholding slotted mould clamp

Product Description

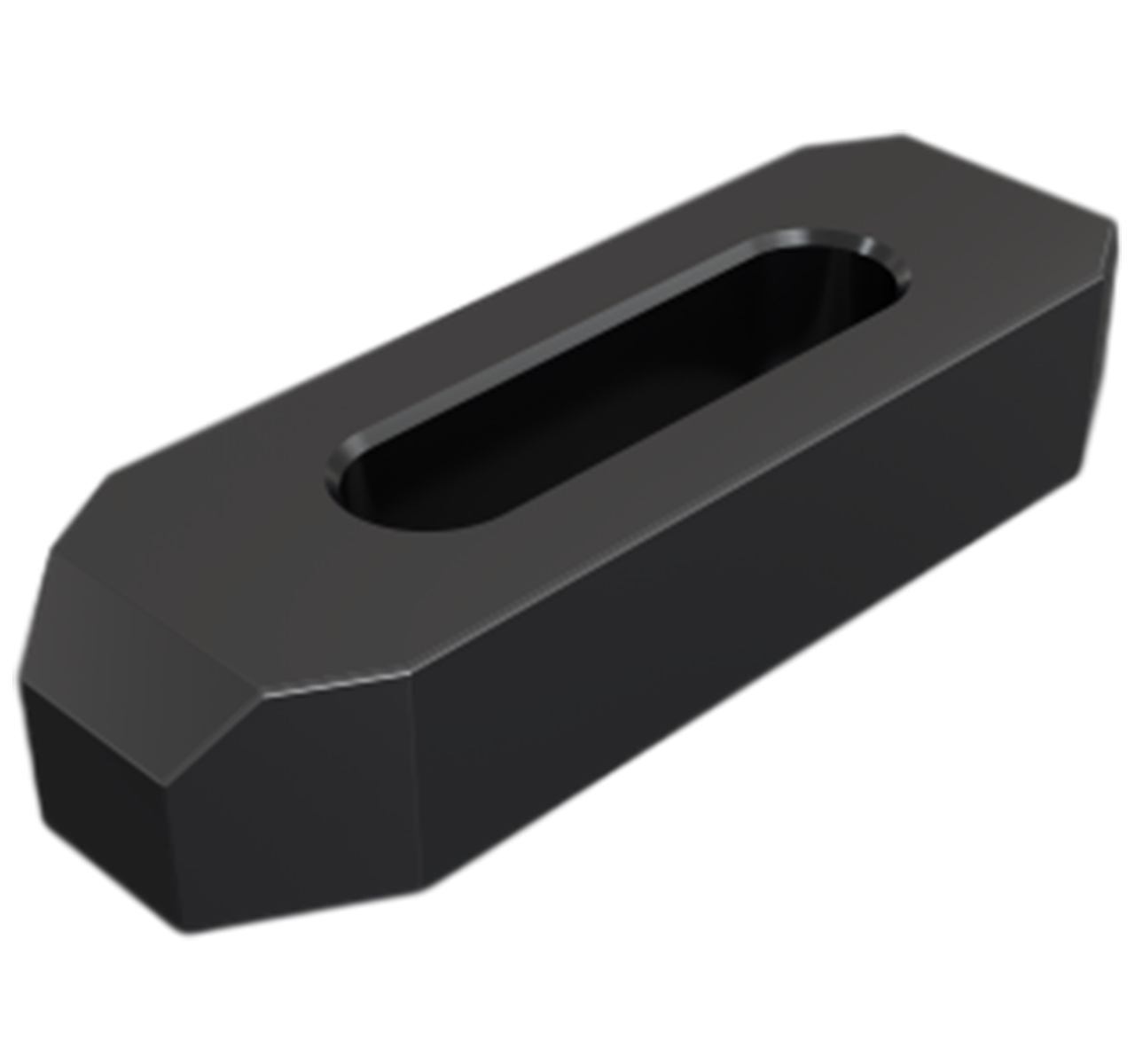

Heavy-Duty Slotted Mould CNC Fixure Clamp for Secure Adjustable Workholding

Material: S45C
Heat Treatment: HRC 32°-38°
Surface Finish: Blackened
Suitable for general flat clamping

Engineered for demanding CNC applications, this Heavy-Duty Slotted Mould Fixture Clamp delivers secure and highly adjustable workholding. Its robust, slotted design provides exceptional flexibility, allowing for easy positioning and a low clamping profile to maximize tool clearance for complex 3D machining. Forged from hardened steel, it guarantees immense strength and durability, ensuring a vibration-free grip on delicate moulds and workpieces without causing surface damage. The tool-free operation enables rapid setup and adjustments, drastically reducing downtime. This versatile clamp is an indispensable component for any precision machining cell, offering reliable performance and enhanced productivity for intricate milling operations.

MODEL NO.	A	B	C	D	E	F	G	H	KG
CP05-12065	65	20.0	25	20.0	13	32	19	13	0.22
CP05-12100	100	30.0	40	30.0			19	13	0.33
CP05-12150	150	49.5	51	49.5			25	15	0.48
CP05-16180	180	28.0	24	28.0	17	38	22	14	0.34
CP05-16125	125	42.0	41	42.0			22	14	0.57
CP05-16150	150	51.0	48	51.0			25	15	0.68
CP05-20100	100	34.0	32	34.0	21	38	22	14	0.41
CP05-20125	125	42.5	40	42.5			25	15	0.62
CP05-20150	150	51.0	48	51.0			25	15	0.82
CP05-24150	150	51.0	48	51.0	26	50	32	19	1.14

Heavy-Duty Slotted Mould CNC Fixure Clamp for Secure Adjustable Workholding 0
