8KN 15KN Automated Zero Point Positioning System Quick Change Modular Clamping Solution
| MOQ: | 1 |
| Price: | 2069 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
automated zero point positioning
,automated modular clamping solution
,positioning modular clamping solution

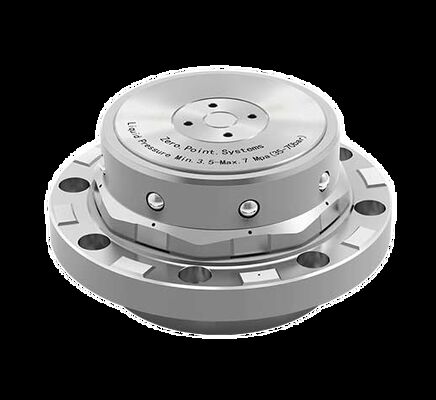

High Precision Automated Zero-Point Positioning System for CNC Machining Quick Change Modular Clamping Solution
Pneumatic unlocking, spring-loaded mechanical locking
Repeat positioning accuracy <0.003mm
Eight-sided clamping, suitable for single-piece use
Material: Hardened stainless steel
Features clamping and release detection interfaces
Positioning surfaces include air holes for automatic cleaning.
This High Precision Automated Zero-Point Positioning System revolutionizes CNC machining efficiency. Engineered for flawless performance, it enables rapid, automated tool-less changeovers in seconds while maintaining micron-level repeatability. The robust modular clamping solution ensures maximum rigidity during high-speed machining, eliminating vibration and guaranteeing superior surface finishes. Seamlessly integrating with robotic systems and pallet changers, it creates uninterrupted production cycles while dramatically reducing non-cut time. This advanced workholding system significantly boosts spindle utilization and throughput, delivering exceptional accuracy and reliability for demanding manufacturing environments. The ultimate solution for achieving unparalleled productivity in high-mix, high-volume precision machining applications.
| Model No. | Pneumatic Type | Hydraulic Type | |||||||
| HQNC-10 | HQNC-20 | HQNC-40 | HQNC-60 | HQNC-10 | HQNC-20 | HQNC-40 | HQNC-60 | ||
| Clamping Force (kN) | 3.5 | 5 | 8 | 15 | 10 | 16 | 25 | 40 | |
| Lifting capacity | Pneumatic 0.6MPa(KN) | 0.5 | 0.5 | 1 | 1.5 | / | |||
| Hydraulic 3.5MPa(KN) | / | 1.5 | 3.2 | 4.6 | 4.5 | ||||
| Hydraulic 5MPa(KN) | / | 5.7 | 9.8 | 15.3 | 20.1 | ||||
| Hydraulic 7MPa(KN) | / | 11.4 | 18.7 | 29.4 | 40.9 | ||||
| Allowed eccentricity during pallet clamping (mm) | ±1 | ±1 | ±1 | ±1.5 | ±1 | ±1 | ±1 | ±1.5 | |
| Lift Capacity (Tray Lift Height When Unloaded) (mm) | 0.3mm | ||||||||
| Operating Ambient Temperature (°C) | 0-70℃ | ||||||||
| Weight | Main Clamping Force (kg) | 1.8 | 3.4 | 6.8 | 12 | 1.8 | 3.4 | 6.8 | 12 |
| Pallet Adapter (kg) | 0.4 | 0.8 | 1.6 | 3 | 0.4 | 0.8 | 1.6 | 3 | |
