Modular Manual Zero Point Clamping Workholding Platform For CNC Machines
| MOQ: | 1 |
| Price: | 483 - 759 USD per item |
| Standard Packaging: | Carton/wooden crate |
| Delivery Period: | 7-10 days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days. |
manual zero point clamping workholding
,workholding platform for cnc
,for cnc manual zero point clamping

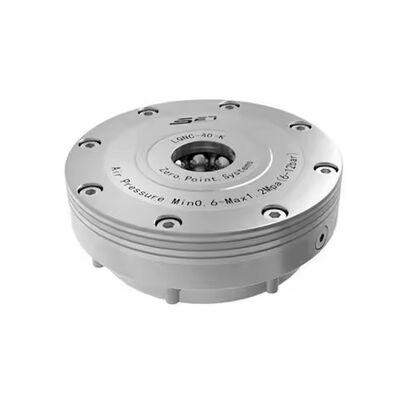

Zero-Point Positioning System Advanced Modular Workholding Platform for CNC Machines
Pneumatic unlocking, spring-loaded mechanical locking;
Material: Hardened stainless steel;
Surface and piston hardened;
Repeat positioning accuracy <0.005mm;
This advanced modular workholding platform revolutionizes CNC efficiency with its zero-point positioning system. Engineered for unparalleled precision, it enables rapid fixture and vise changes in seconds while maintaining micron-level repeatability. The system's robust kinematic coupling ensures maximum rigidity during heavy machining, eliminating vibration and guaranteeing superior surface finishes. By streamlining setups and drastically reducing non-cut time, it significantly boosts spindle utilization and overall productivity. Compatible with a wide range of modular components, this versatile solution seamlessly integrates into existing workflows, providing manufacturers with a future-proof foundation for achieving ultimate precision and efficiency in all machining operations.
| Model No. | Unlocking Method | Clamping Force (kN) | Tensioning Force (kN) | Weight (kg) |
| ANCZ-40-K | Pneumatic | 40 | 105 | 4.2 |
| Model No. | ØDN | ØD1 | ØD2 | ØD3 | H1(±0.01) | H1 | M |
| ANCZ-40-K | 172 | 40 | 140 | 152 | 38 | 25.2 | 8*M8 |
