Stainless Steel Zero Point Clamping System Quick Replacement Zero Point Locator

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	ANC-2
Document:	ANC-2.pdf

Minimum Order Quantity:	1
Price:	166 - 215 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Unlock Method:	Pneumatic Pressure	Clamping Force (kN):	1.25
Tension Force (kN):	5	Blow:	✔
Weight (kg):	0.15	Repeatability（mm）:	0.005
Material:	Hardened Stainless Steel	Service Life:	One Million Times
Highlight:	Stainless Steel Zero Point Clamping System , 1.25kN Zero Point Clamping System , Quick Replacement Zero Point Locator

Product Description

Zero Point Locator Zero Point Clamping System Quick Replacement Of Fixtures

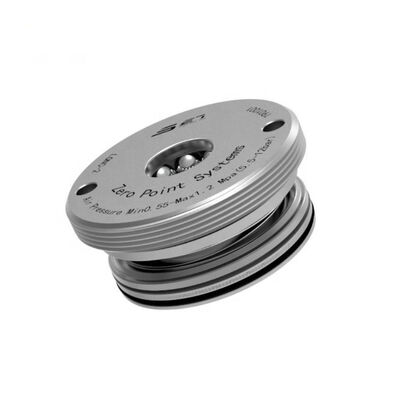

Threaded concealed installation type zero locator with a diameter of 45mm, a total thickness of 20mm, and a weight of 0.15kg;

It is a small-sized zero point locator with concealed installation by air pressure, which is unlocked by air pressure and locked by spring mechanism.

The repeated positioning accuracy is less than 0.005mm, with a clamping force of 1.25kN and a tightening force of 5kN for a single locator.

Unlike the traditional concealed installation method, this locator is installed through threaded rotation, which is more suitable for quick change of small and lightweight fixtures.

Part Number (Standard Version)	Part Number (With Angular-Location)	Size Number	Unlock Method	Clamping Force (KN)	Tensile Force (KN)	Chip Blowing	Weight (kg)
ANC-2 (Threaded Mounting)		Q2	Pneumatic Pressure	1.25	5	√	0.15
ANC-5	ANCD-5	Q5	Pneumatic Pressure	5	13	√	0.5
ANC-10	ANCD-10	Q10	Pneumatic Pressure	10	25	√	1.4
ANC-20	ANCD-20	Q20	Pneumatic Pressure	17	55	√	2.6
ANC-40	ANCD-40	Q40	Pneumatic Pressure	40	105	√	4.2

Size Number

φB

φC

φD

H1
(±0.005)

M45×1

Size Number	φD1	φD2	φD3 (H7)	φD4	H	H1 (±0.005)	M	T
Q5	78	18	58	65	30	8.5	8×M4	21.5
Q10	112	22	78	92	35	10	8×M6	25
Q20	138	32	102	115	49	15	8×M6	34
Q40	172	40	127	143	63	18	8×M8	45

Stainless Steel Zero Point Clamping System Quick Replacement Zero Point Locator 0
