Ball Lock Mounting System Manual High Precision Ball Lock Shaft

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	QSP16020
Document:	Ball Lock-QSP.pdf

Minimum Order Quantity:	1
Price:	41 - 69 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Material:	High-quality Steel	Installation:	Easy To Install And Use
Maintenance:	Low Maintenance Required	Size:	Customizable
Adjustability:	Easily Adjustable For Different Workpieces	Type:	Fixture
Durability:	Long-lasting	Convenience:	Saves Time And Effort In Changing Workpieces
Usage:	Quickly Change Workpieces In A Production Line	Precision:	Ensures Accurate Positioning Of Workpieces
Efficiency:	Increases Production Speed
Highlight:	precision ball lock shaft , high precision ball lock shaft , manual ball lock liners

Product Description

Ball Lock Mounting System Manual High-precision Ball Lock Shaft

Features, Benefits, & Product Specifications:

Material: 4340 Steel
Finish: Black Oxide
Heat Treat: Shanks: 40-45 RC
Operating Temperature Range: -20°F to 400°F (-30°C to 200°C)

Repetitive positioning accuracy<± 0.013mm;

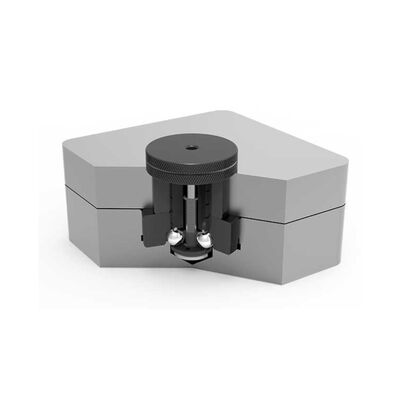

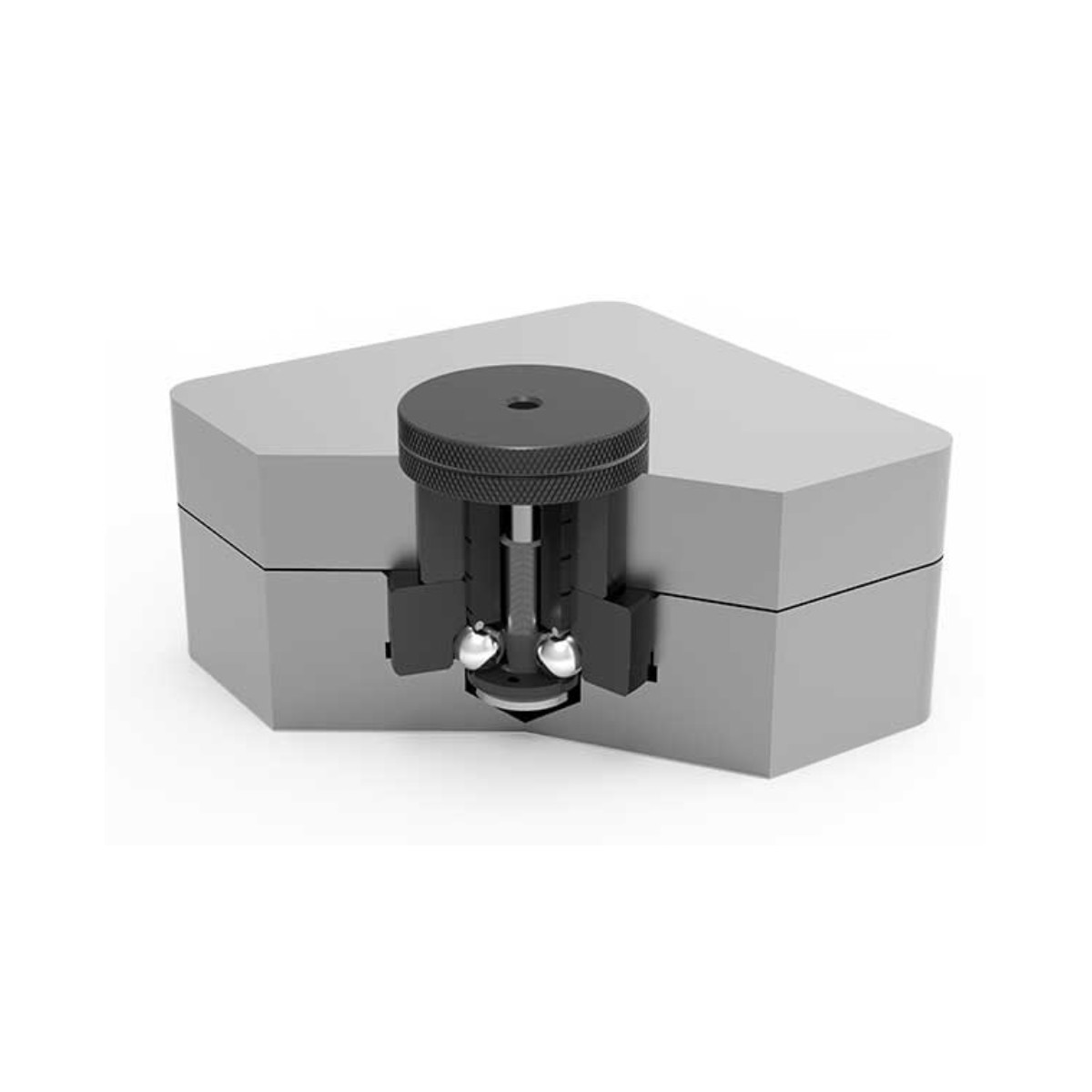

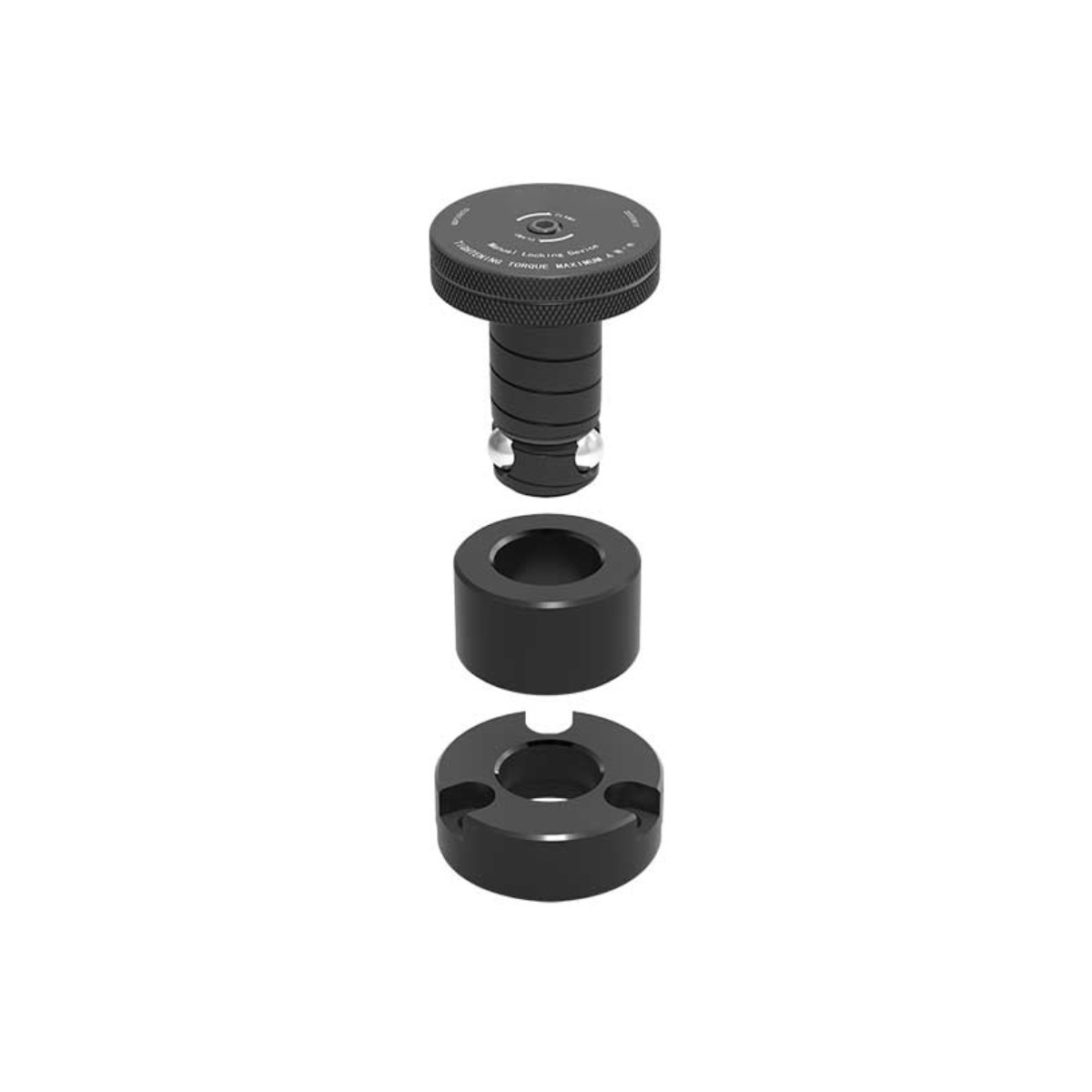

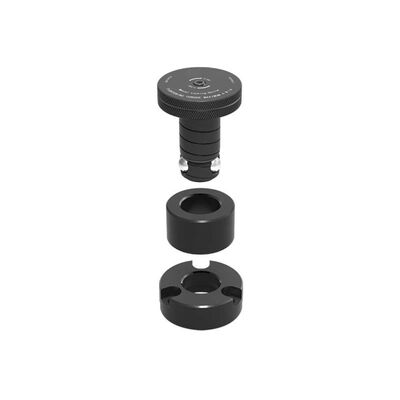

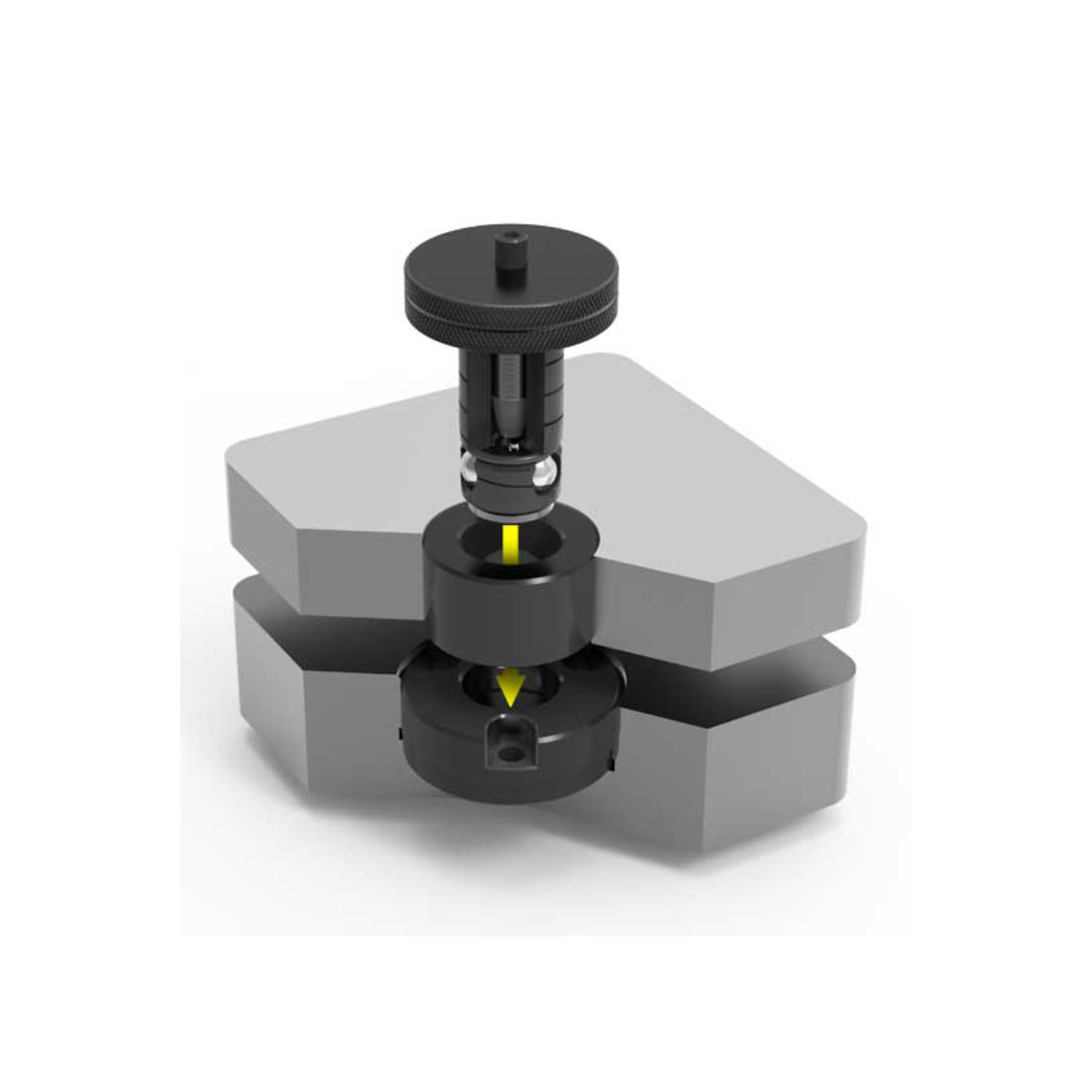

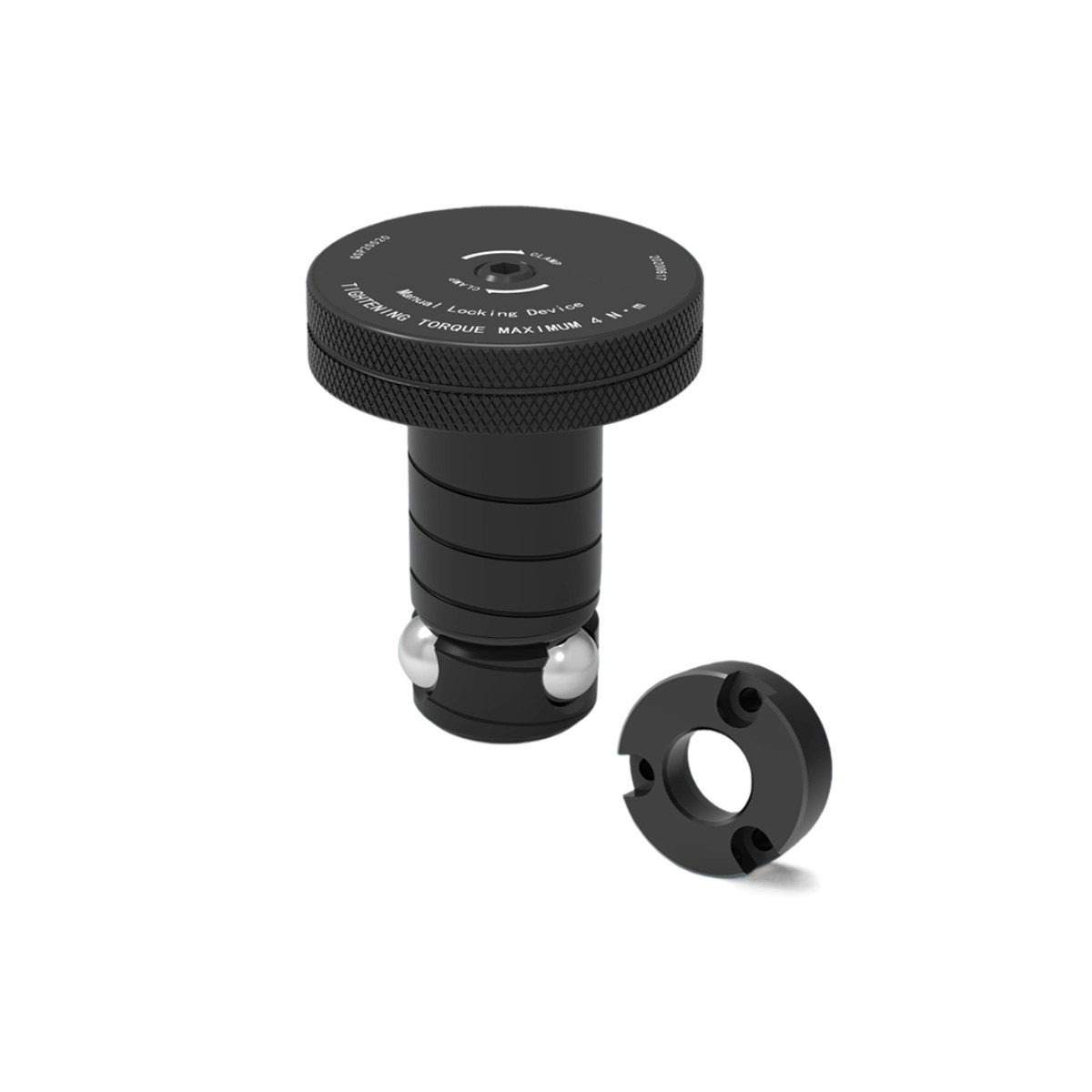

The Ball Lock Mounting System is a manual, high-precision solution for rapid and repeatable component positioning. This system utilizes a precision-machined shaft with locking balls that engage with a corresponding mount, ensuring rigid and accurate location every time. Ideal for fixture plates, molds, and automated applications, it allows for tool-less changes in seconds, drastically reducing downtime. The manual operation provides a simple, reliable mechanism for achieving micron-level repeatability without complex hydraulics or pneumatics. Enhance your production efficiency with this robust ball lock shaft, designed for seamless integration and unparalleled accuracy in demanding industrial environments.

PART NUMBER	CLAMPING FORCE(KN)	TIGHTENINGI TOROUE (KN)	TIGHTENINGI ADAPTER PLATE (Nm) (±0.13)	ΦD1	ΦD2	H	H1	M	SW	WEIGHT (kg)
QSP-16020	5.3	4.5	20	32	16	36.5	8	M6	3	100
QSP-16025	5.3	4.5	25	32	16	41.5	8	M6	3	110
QSP-20020	13.3	5.3	20	40	20	39.5	10	M6	3	200
QSP-20025	13.3	5.3	25	40	20	44.5	10	M6	3	230
QSP-25020	30	11	20	45	25	44	10	M8	4	270
QSP-25025	30	11	25	45	25	49	10	M8	4	300
QSP-30020	44	18	20	50	30	49	13	M10	5	360
QSP-20025	44	18	25	50	30	54	13	M10	5	400

Ball Lock Mounting System Manual High Precision Ball Lock Shaft 0
