High Strength Steel T Slot Nut Rhombus Rotary For Modular Fixture Systems

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT38-1210
Document:	T-Slot Nut-PT38.pdf

Minimum Order Quantity:	5
Price:	8.5-9 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Compatibility:	Fits Most Fixtures	Weight:	0.01kg
Heat Treatment:	HRC30°~35°	Material:	S45C
Threaded Hole:	M10	Surface Finish:	Black Oxide
Highlight:	High Strength T Slot Nut , T Slot Nut Rhombus Rotary , Fixture Systemssteel t slot

Product Description

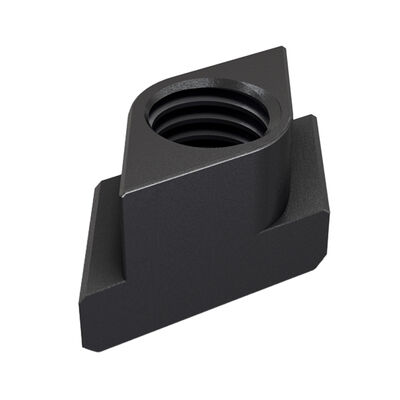

High-Strength Rhombus Rotary T-Slot Nut For Modular Fixture Systems

Material: S45C(JIS)

Heat treated: HRC 30°~35°

Surface finish︰Black Oxide.

Medium carbon steel, Heat treatment HRC 30°~35° and Chemically Blackened.

Applications:

For longer T Slots, introduction of normal T Nut from ends consumes more time and also requires cleaner slots

Rhombus T-Nut can be inserted from the top of the bed at the desired place and then turned to achieve normal T-Nutfunctions.

Model	T	A	B	C	L	M	KG
PT38-1210	11.7	17.5	5.5	12.7	11.5	M10	0.01
PT38-1412	13.8	22.2	8.7	15.8	13.5	M12	0.023
PT38-1614	15.8	25.4	8.7	15.8	15.5	M14	0.03
PT38-1816	17.8	28.5	11.12	19	17.5	M16	0.03
PT38-2018	19.7	31.7	11.9	19	19.5	M18	0.044
PT38-2220	21.7	36	13.8	25.4	21.5	M20	0.062
PT38-2420	23.5	38.2	14	25.4	23.5	M20	0.092
PT38-2824	26.9	41.3	17.5	28.5	27.5	M24	0.162
