Swivel Foot Clamping Fixture CNC Machine Tooling Workholding Manual Clamp For Milling

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT29
Document:	SWIVEL PAD-PT29.pdf

Minimum Order Quantity:	5
Price:	28-70 USD per item
Packaging Details:	Carton/Wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Model:

Material:

Heat Treatment:

HRC 32°-38°

Surface Finish:

Blackened

Highlight:

Swivel Foot Clamping Fixture

Foot Clamping Fixture CNC Workholding

Milling CNC Machine Tooling

Product Description

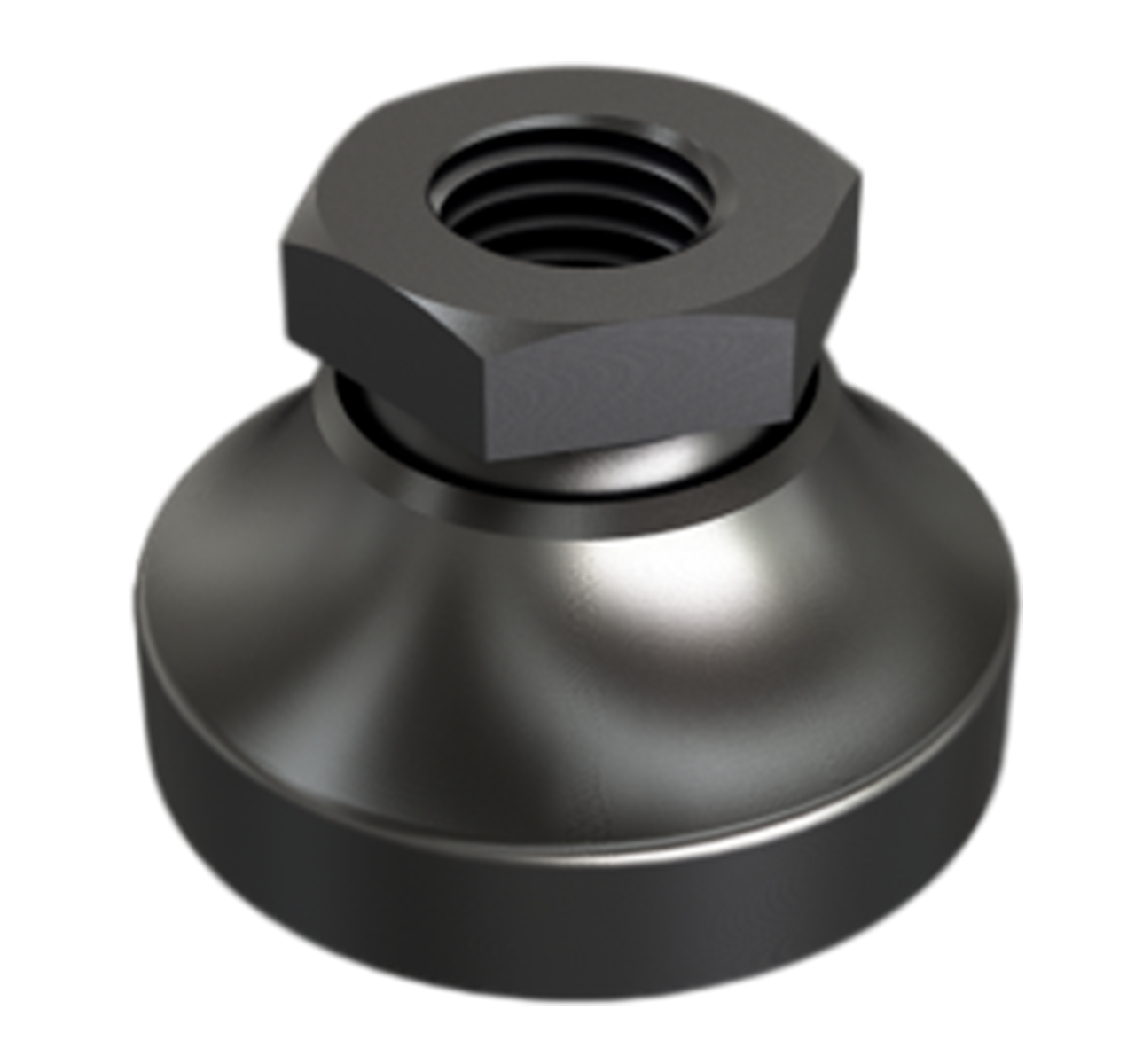

Swivel Foot Clamping Fixture CNC Machine Tooling Workholding Manual Clamp for Milling Vise

Material: S45C
Heat Treatment: HRC 32°-38°
Surface Finish: Blackened
Application: Used in combination with bolts as a support clamping plate
Features: Allows for appropriate inclination with the clamping plate.

Model No.	A	B	C	D	E	F	Weight(kg)
PT29-1219	M12	19	35	24	11	7	0.08
PT29-1624	M16	24	40	29	13	8	0.15
PT29-2029	M20	29	50	40	10	10	0.3

Swivel Foot Clamping Fixture CNC Machine Tooling Workholding Manual Clamp For Milling 0
