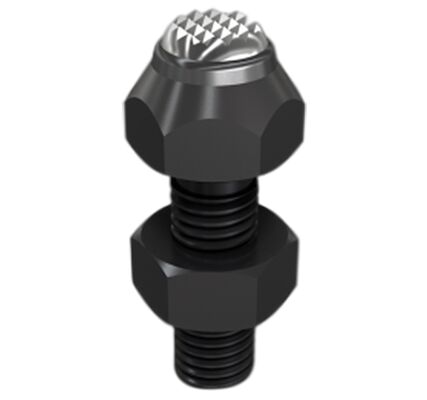

Swiveling Jack Screw Adjustable Form Flattened Ball Locknut Fixture Parts HRC 28

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT35
Document:	SWIVELING JACK SCREW-PT35.pdf

Minimum Order Quantity:	5
Price:	21-42 USD per item
Packaging Details:	Carton/Wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Model:

Material:

Hardness:

HRC 28°–32°

Steel Balls:

HRC 62°

Highlight:

Swiveling jack screw

jack screw Adjustable

Fixture Parts HRC 28

Product Description

Swiveling Jack Screw Adjustable Form Flattened Ball Locknut Swiveling Jack Screw for Workholding Fixtures

Material: Body S45C,
Steel balls: SU)2
Hardness: Body HRC 28°–32°
Steel balls HRC 62°

Model No.	A	B	C	E	F	Weight(kg)
PT35-0814	36	25	7	14	M8*1.25	0.025
PT35-1017	45	30	8	17	M10*1.5	0.055
PT35-1217	30	35	10	17	M12*1.75	0.055
PT35-1624	60	40	12	24	M16*2	0.14
PT35-2036	87	60	14	36	M20*2.5	0.33
PT35-2436	98	66	18	36	M24*2	0.66
PT35-3046	110	75	21	46	M30*2	1.1

Model No.	A	B	C	E	F	Weight(kg)
PT36-0814	36	25	7	14	M8*1.25	0.025
PT36-1017	45	30	8	17	M10*1.5	0.055
PT36-1217	30	35	10	17	M12*1.75	0.055
PT36-1624	60	40	12	24	M16*2	0.14
PT36-2036	87	60	14	36	M20*2.5	0.33
PT36-2436	98	66	18	36	M24*2	0.66
PT36-3046	110	75	21	46	M30*2	1.1

Swiveling Jack Screw Adjustable Form Flattened Ball Locknut Fixture Parts HRC 28 0
